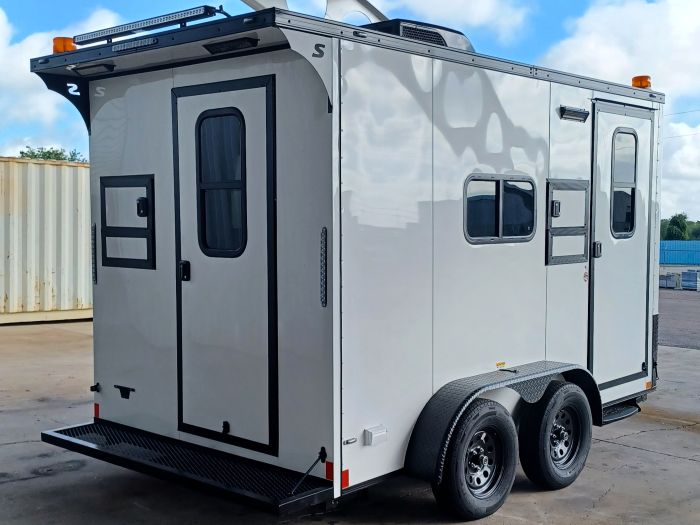

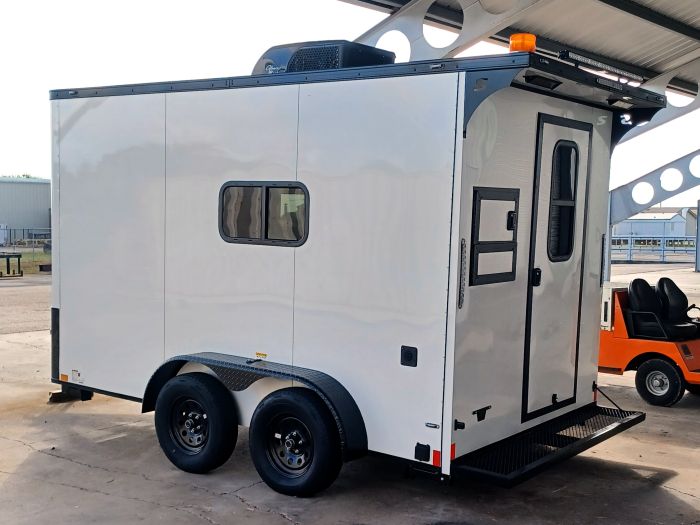

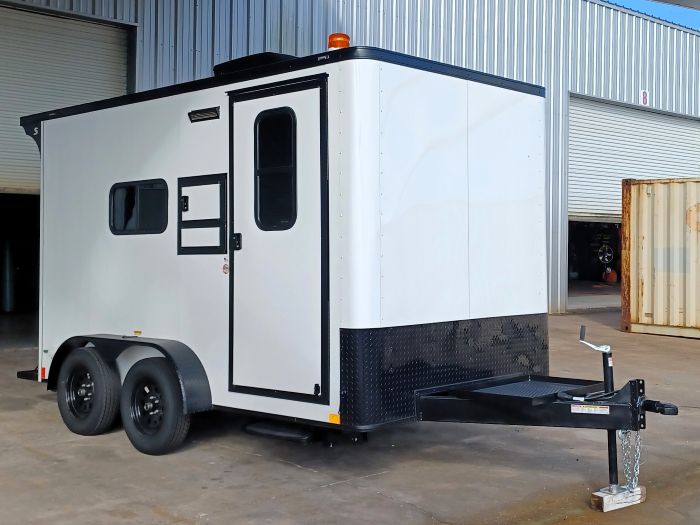

Clegg Industries custom-designed and upfitted this 12-foot tandem-axle fiber optic splicing trailer specifically to satisfy the rigorous operational standards of the Texas Department of Transportation (TxDOT). Serving as an autonomous, mobile cleanroom, this unit allows field technicians to safely fuse, test, and repair delicate glass fibers in high-traffic roadside environments and remote sites without environmental contamination.
Key Specifications & Upfit Features

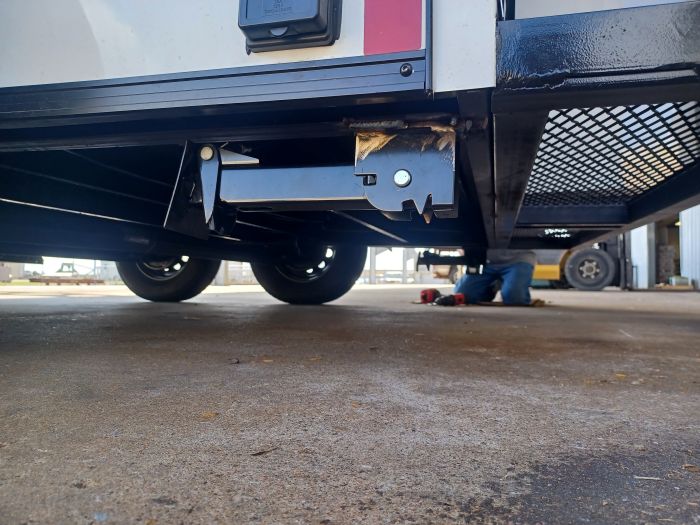

- Structural & Heavy-Duty Frame: Built with a full perimeter all-tube aluminum frame and 7,000 lb. payload capacity. Equipped with tandem rubber torsion axles, 15-inch steel-belted radial tires, a 5,000 lb. manual jack, four-corner stabilizing leveling jacks, and an adjustable height coupler (2-5/16" & pintle eye).

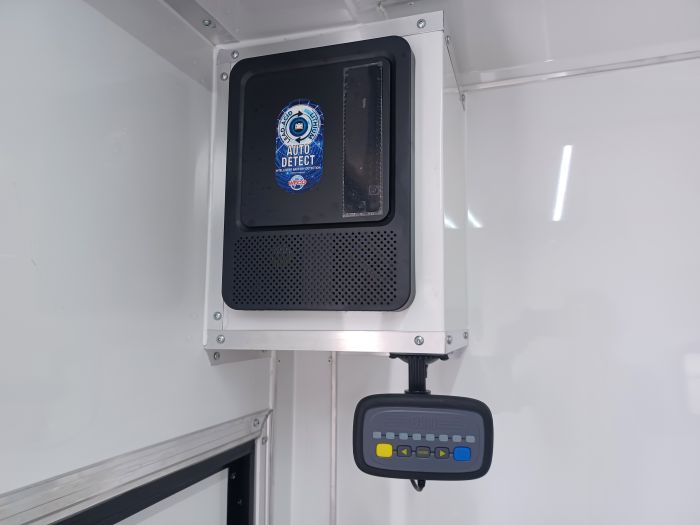

- Climate-Controlled Workstation: Complete interior thermal insulation with smooth, easy-to-clean white vinyl walls and ceiling. Features a 13,500 BTU roof-mounted air conditioner and a 5,200 BTU electric wall heater to keep technicians and precision optical gear operating within optimal temperature thresholds year-round.

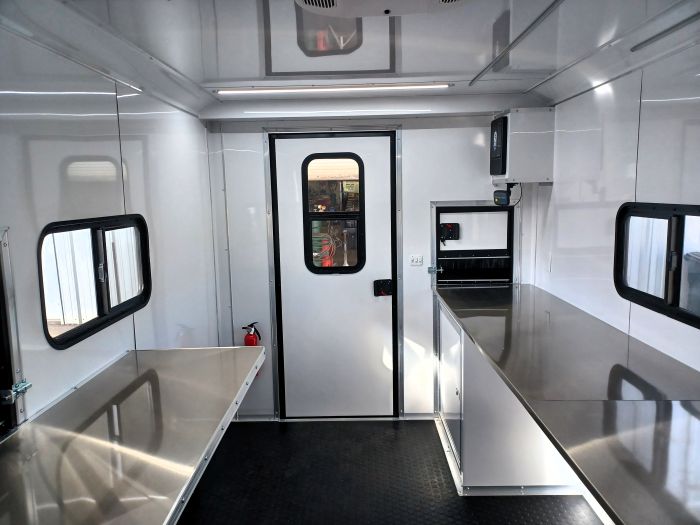

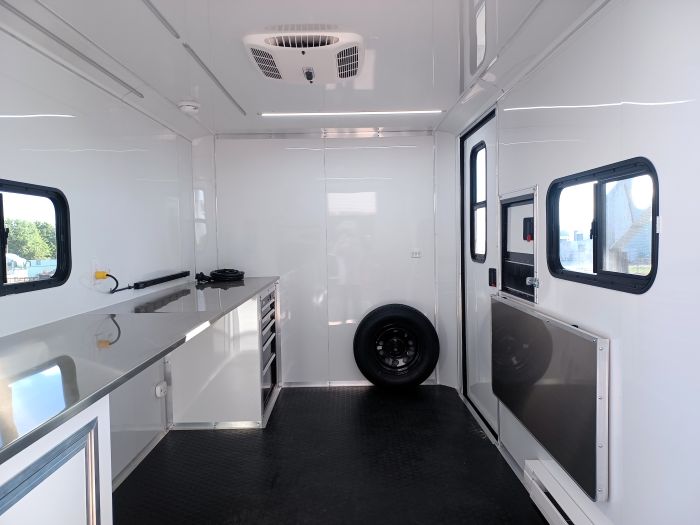

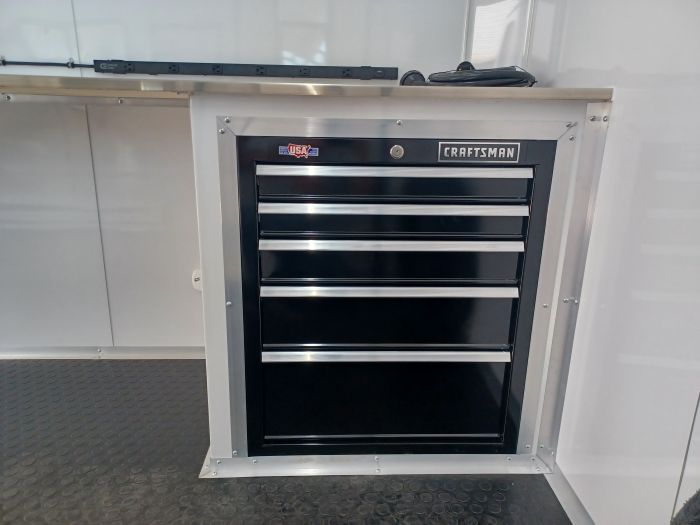

- Fiber Splicing Ergonomics: Features a full-length countertop workspace along one wall, paired with a compact, fold-down flip-up workbench on the opposite side to maximize usable floor space and operational flexibility.

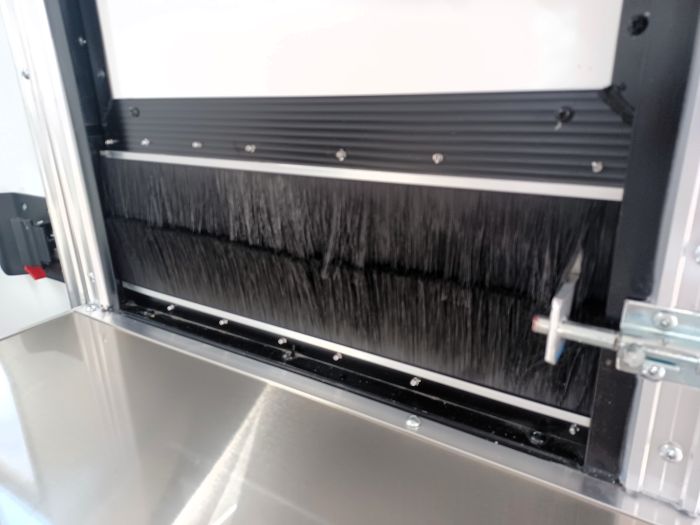

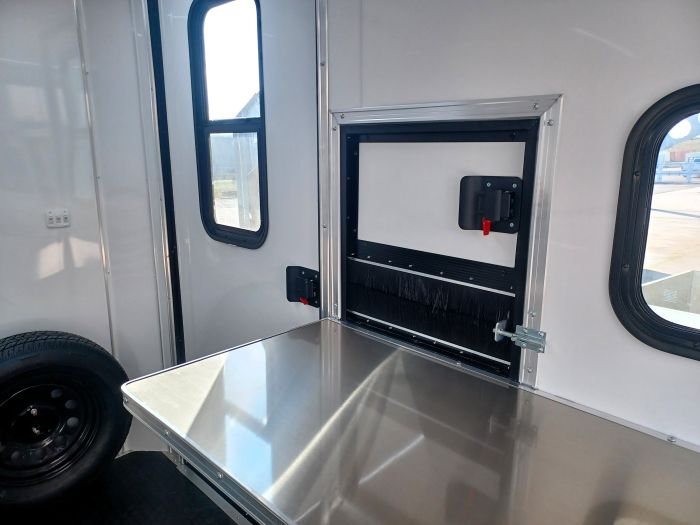

- Sealed Fiber Access & Entry: Equipped with two brush-sealed fiber pass-through doors (rear-right and passenger-side) to pull cable directly onto workstations while keeping dust, wind, and rain out. Dedicated entry doors are located on both the passenger side and rear exterior.

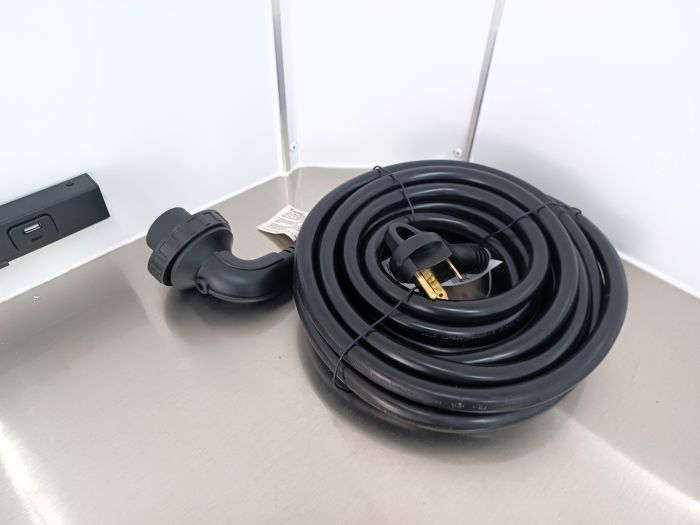

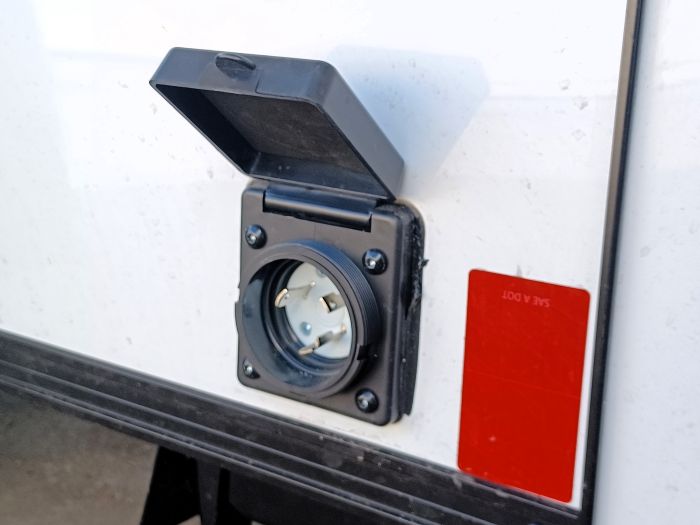

- Electrical System & Onboard Power: Configured for independent field operation with multiple 120V interior outlets (15A), optional onboard generator support, and a minimum of six surface-mount LED ceiling lights. Protected by automatic circuit breakers and enclosed protective wiring looms.

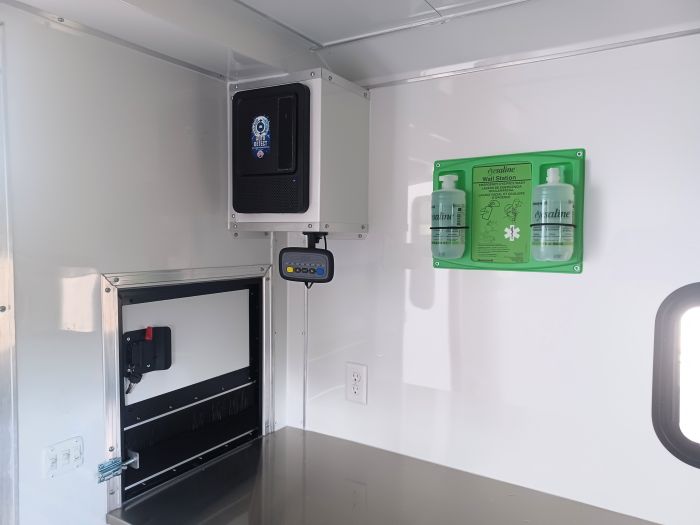

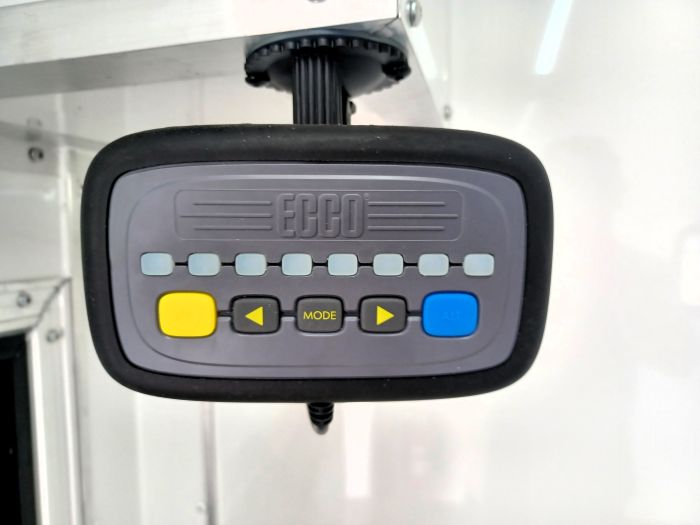

- DOT & Roadway Safety Package: All-LED theft-resistant exterior lighting system compliant with Texas Traffic Code standards, including armored clearance lamps, side markers, and housing-type reflectors. Upfitted with a breakaway battery kit, electric brakes on all axles, heavy-duty safety chains with clevis adjustment, custom reflectors, a hardwired carbon monoxide detector, a 1A-10BC fire extinguisher, an eyewash station, and a first aid kit.
- View YouTube Video
Designed for immediate deployment across state highway networks, this specialized upfit provides TxDOT utility crews with a protected, fully equipped environment to keep critical intelligent transportation systems (ITS) and regional communications active.
