Job #532: Custom Mobile SCIF Trailer

Custom manufactured SCIF features the following:

• 10' x 50' x 94.5" custom steel welded enclosure
• Eight ISO blocks embedded in structure to match trailer

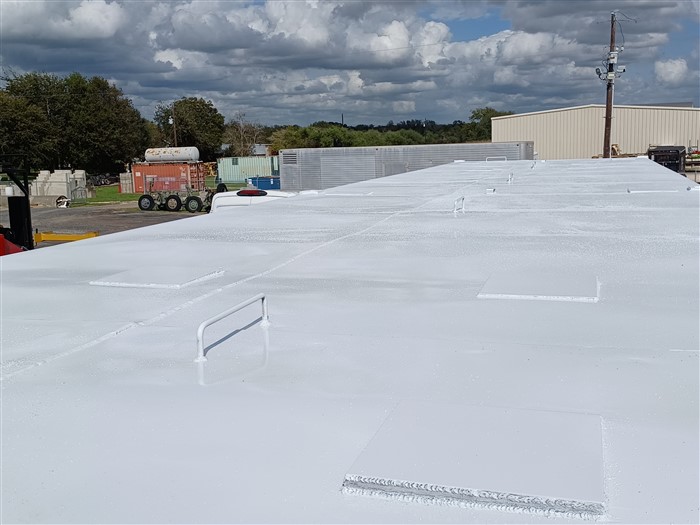

• Flat roof accommodates antennae mounting
• 36" x 80" standard steel exterior door into vestibule area

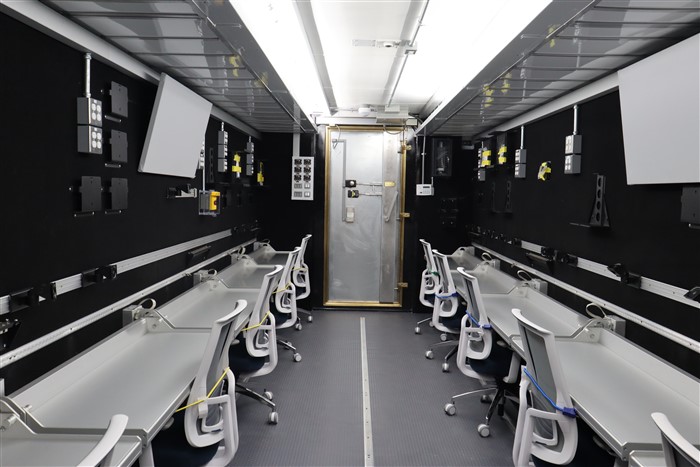

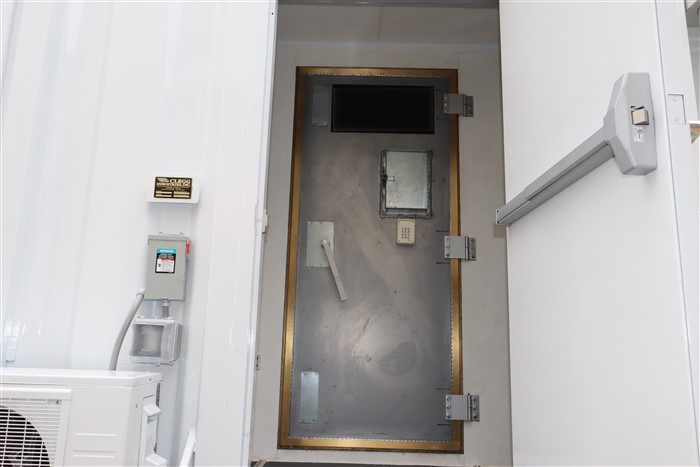

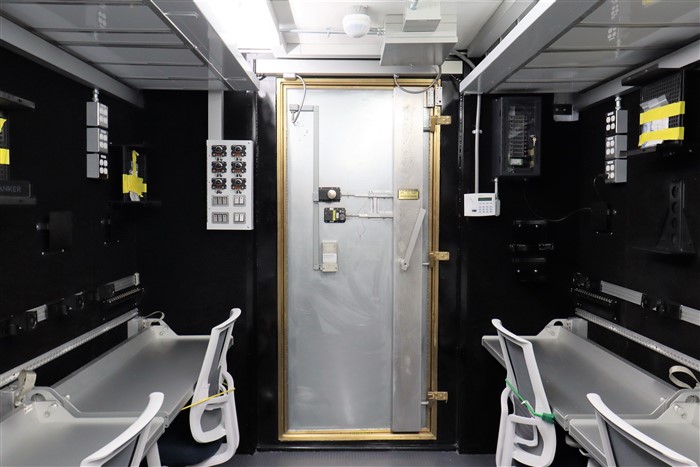

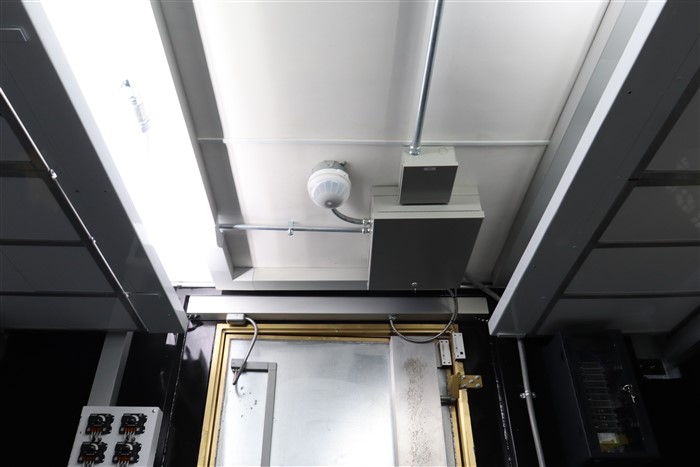

• STC50/RF SCIF Door, with CDX10 and cypher/day lock 36” x 80”
• Sound deadening insulation
• RF and acoustical testing with report for ICD/ICS-705. See RF report here (.PDF file)
• One layer 5/8” sheet rock, one layer 5/8” plywood, per ICD 705
• Carpeted walls
• 3/4" plywood subfloor with rubber coin floor material
• VersaTie track on floor and walls
• White Kemply ceiling covering
• HVAC environmental units, heat and cool, with honeycomb filters
• Insulated ductwork
• Partition wall with 36” sliding pocket door
• 150A RF power isolation & filtering system
• Secure / unsecure aluminum wire trays
• Data filters for secure data (CFC)

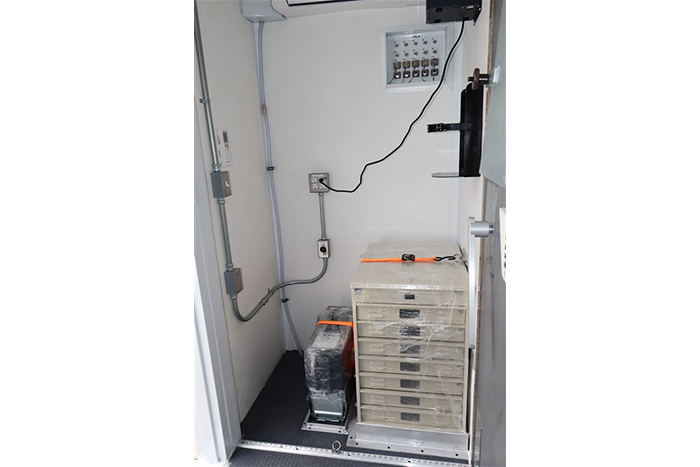

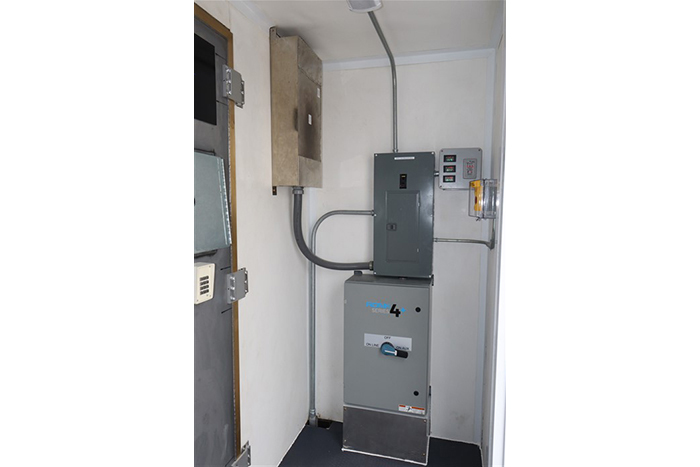

• Vestibule electrical panel for incoming power

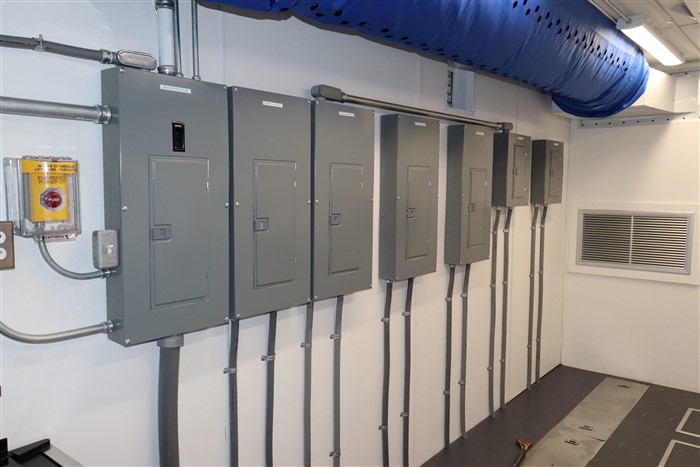

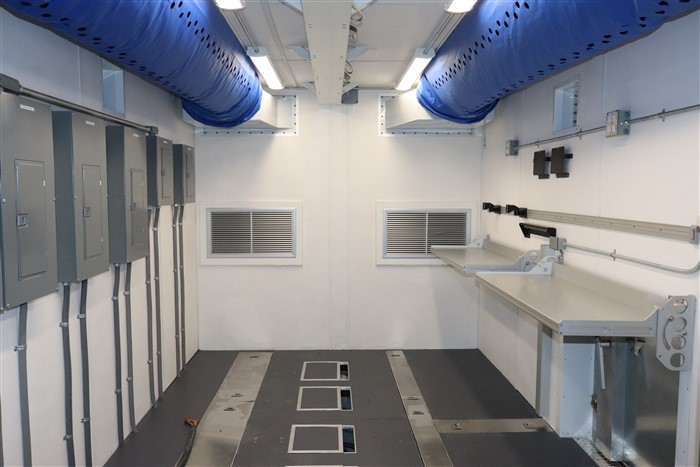

• Electrical panels in computing room for filtered power
• Dual quadplex 110V 20A receptacles in operator area (x 14)
• Exterior GFCI receptacles, 8 utilizing exterior conduit unfiltered power
• Mounting area in computer room for (6) 42U electronic racks with attachment points for coil type shock isolation on top and bottom

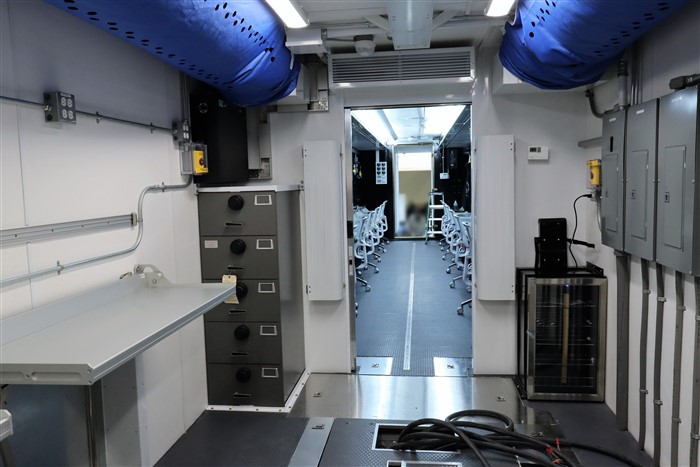

• GSA safe mount

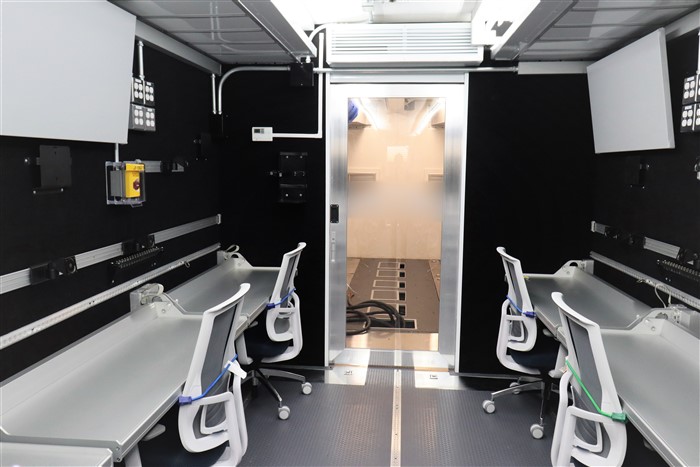

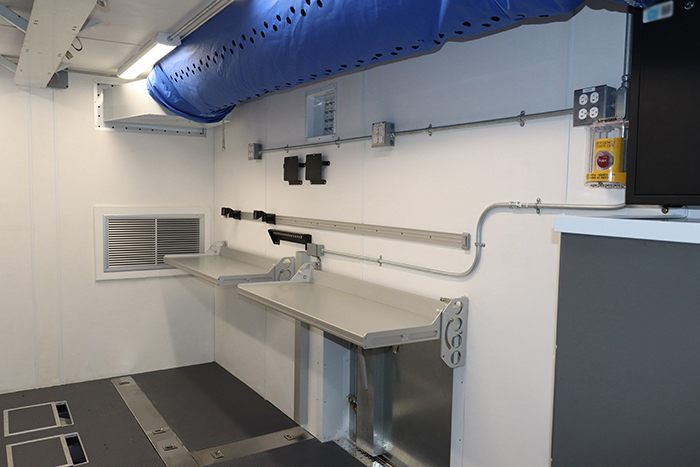

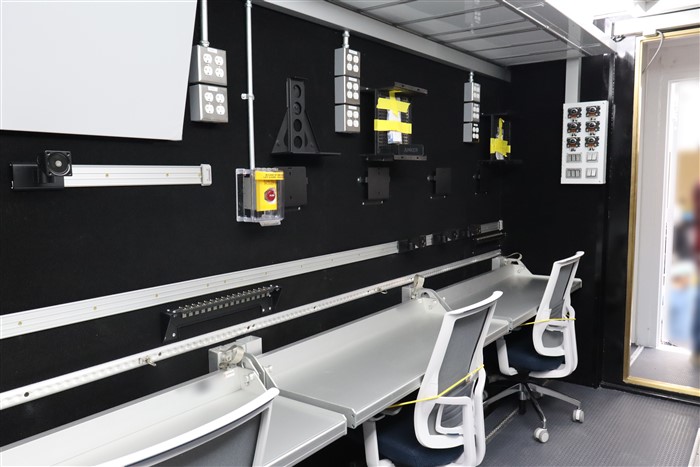

• Aluminum folding & locking workstations in operator and computing room
• IDS system

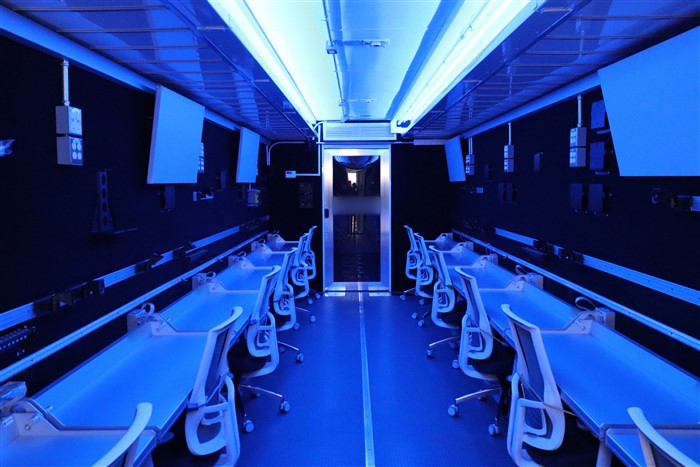

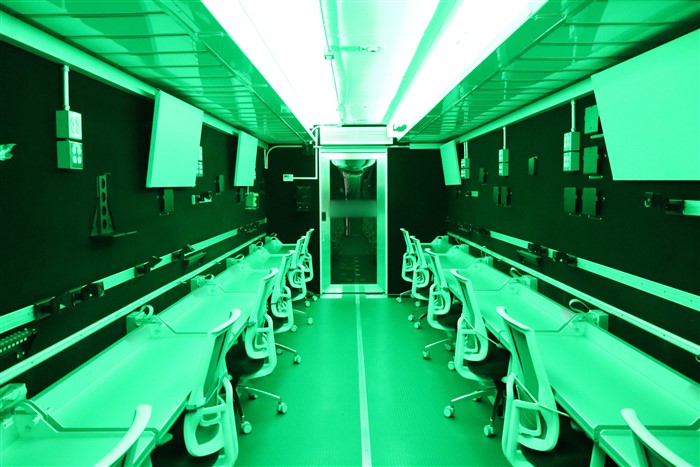

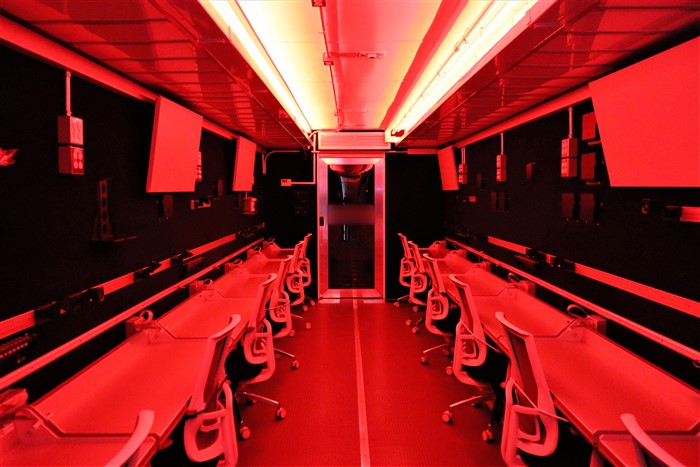

• LED lighting, red, white, blue
• Refrigerator
• Welded steel side mounting points for multiple antennas

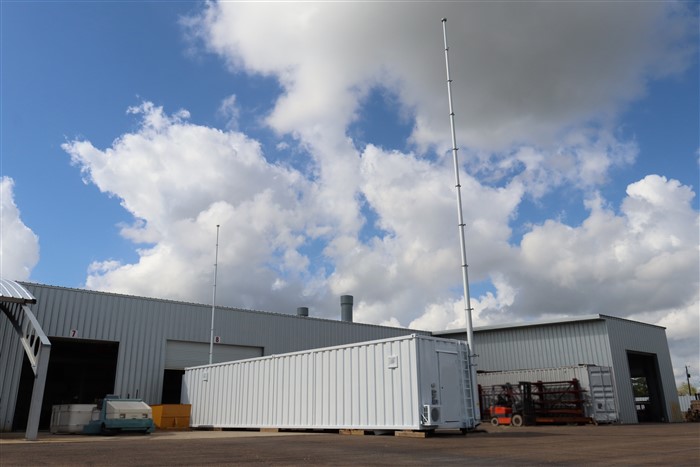

• Locking pneumatic mast on rear wall and between AC units
• Ladder for access to roof on rear wall
• Roof harness cable system for fall protection
• Built for future air transport capability by military aircraft C-17, C-5
• Security alarm
• Fire extinguisher mounts in vestibule, computing room, and work area
• Compliant to ICD/ICS-705 Technical Specifications for Construction and Management of Sensitive Compartmented Information Facilities VERSION 1.5
• SCIF grounding solution kit to meet ICD-705
• Alarm compliant to ICD-705

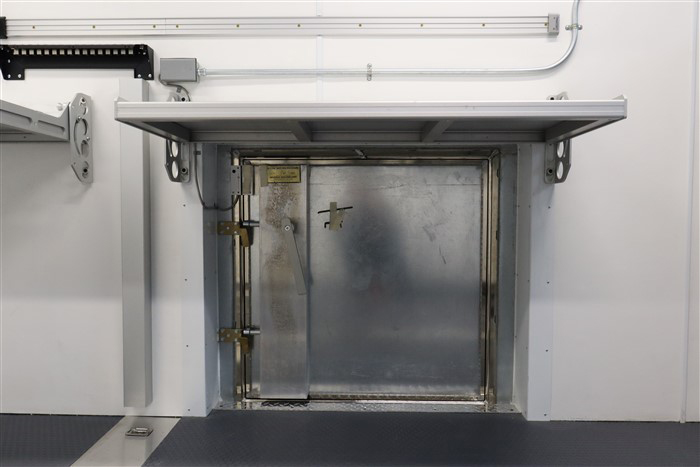

• Two penetration panels at computer room for communication wires
• Shielding or specific connectors (SMA, BNC, etc.) in place for the antenna pass-through

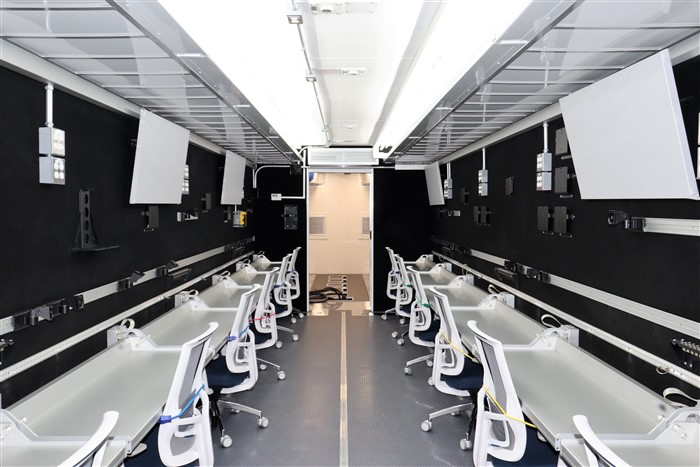

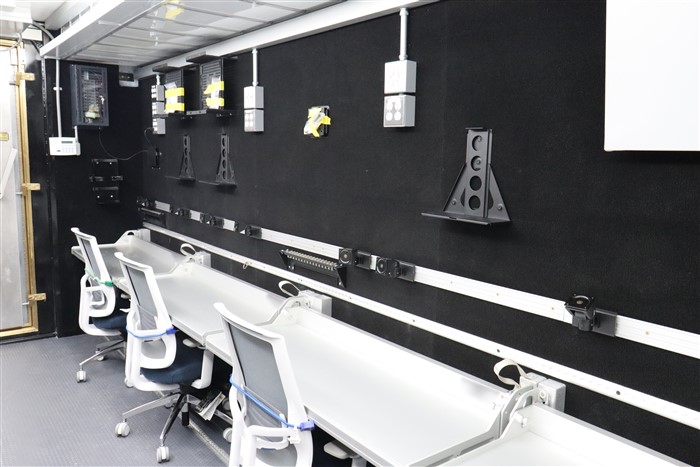

• Tables 20" deep by 49" wide, locking in both deployed and stowed (down) positions, lining both sides of the SCIF (Qty 15)
• Wiring for UPS and filtered and surge suppression supplied power at 14 stations
•  Network connections Qty. 8 CAT 7 (per station)
• Office chairs (Qty 15)
• Intercom interface mount (Qty 14)
• Radio interface mounts for remote controls (Qty 3)
• Articulating display monitor mounts located at each workstation
• RF filtered connections from exterior
• Ethernet filtered connectors
• Mounting area for UPSs
• Locking glass pocket door
• Cell phone storage

Custom manufactured Trailer features the following:

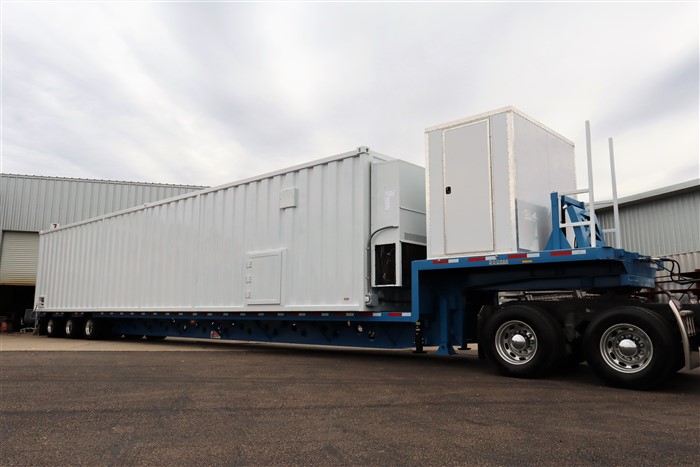

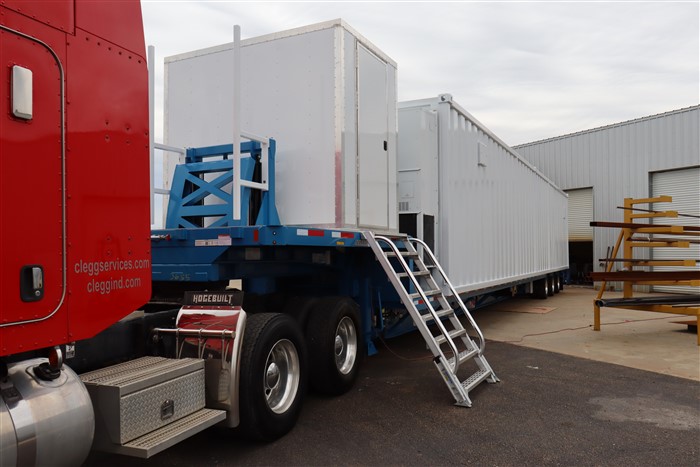

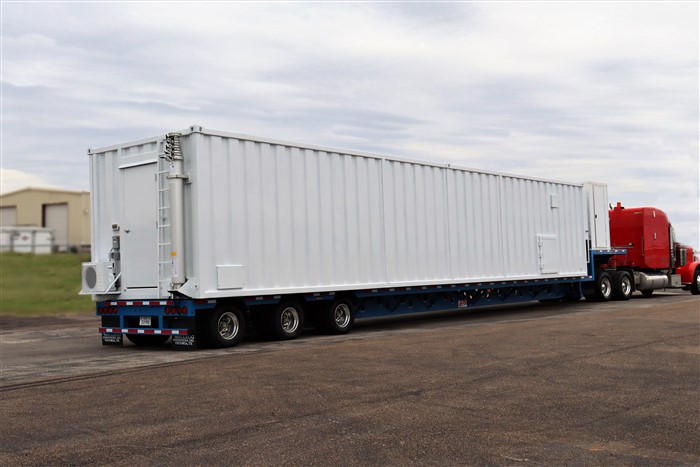

• 63' drop deck, gooseneck, full width trailer
• Top deck length: 10 ft.
• Bottom deck length: 53 ft.
• Width: 102"
• Two main beams
• Inner beam flange: steel½" x 5" top flange and 5/8" x 5" bottom flange
• Web thickness: 7 GA thickness
• Inner beam depth: 24"
• Rear deck height: 35" drop deck
• 49" fifth wheel with hydraulic elevation adjustment
• Air ride suspension- Hendrickson HT250
• Axle type: Watson Chalin 25k Axle
• 3 axles
• Axle rating: 20,000# GVWR
• Axle spacing 61"
• Overhang 30"
• Michelin 245/70R17.5 tires
• Outer wheels 17.5 aluminum milled
• Inner wheels 17.5 standard steel white
• Anti-lock braking system: Meritor 4S/2M
• 4 point Hydraulic leveling system

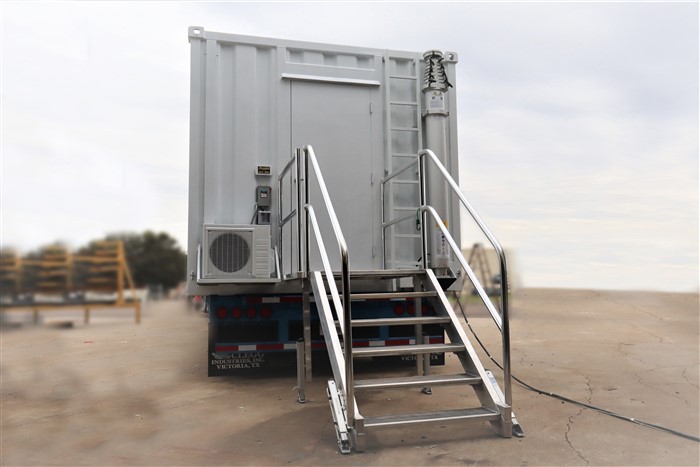

• Aluminum Stairs with Handrails

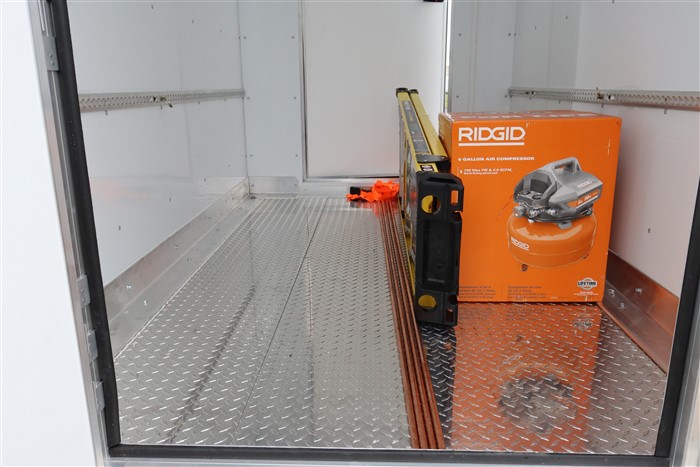

• 5' x 8' x 78" custom aluminum enclosure on neck of trailer providing storage for stairs during transport and other supplies, with 12V interior lights with battery and trickle charger (power from trailer)
• In May of 2024 an Award Of Excellence was presented to Clegg Industries for this project. The award ceremony took place at the 2024 NPSA Conference & Trade Show in Washington D.C. at the Gaylord National Resort on May 6, 2024. Clegg presented our nomination for this award and we won! NPSA, National Portable Storage Association is a national association of companies that design and build portable enclosures.
