Clegg Industries manufactured three Antarctic traverse structures for Leidos. Leidos provides logistical support to the United States Antarctic Program (USAP).

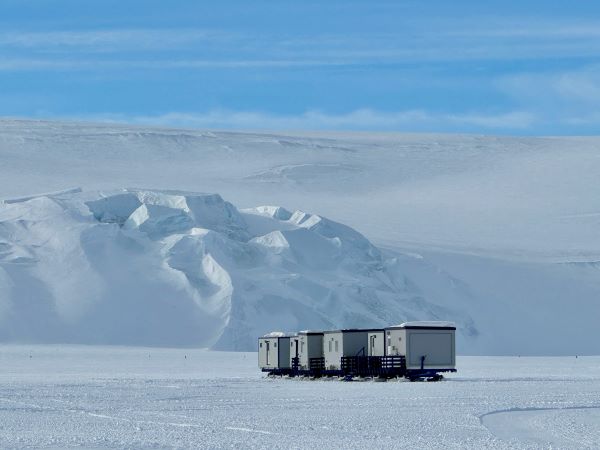

The USAP traverse modules will serve as mobile “field camps’ during the austral summer months with ambient temperatures typically between -50F and +30F and 24 hour daylight.

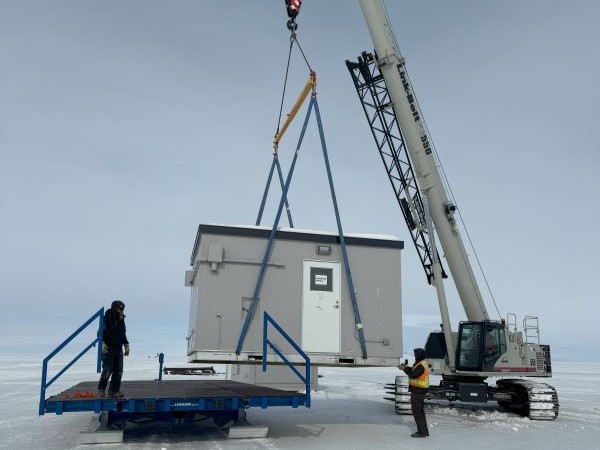

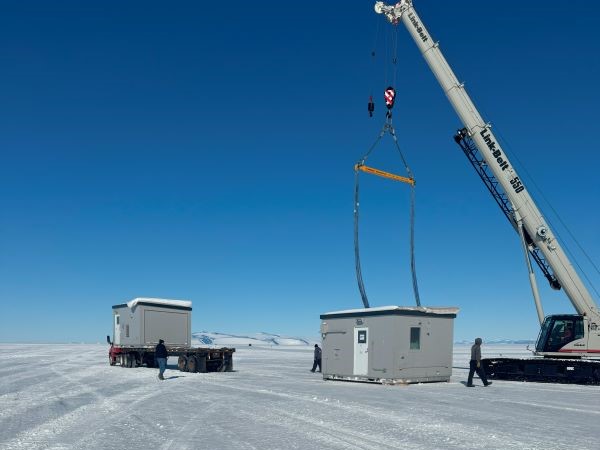

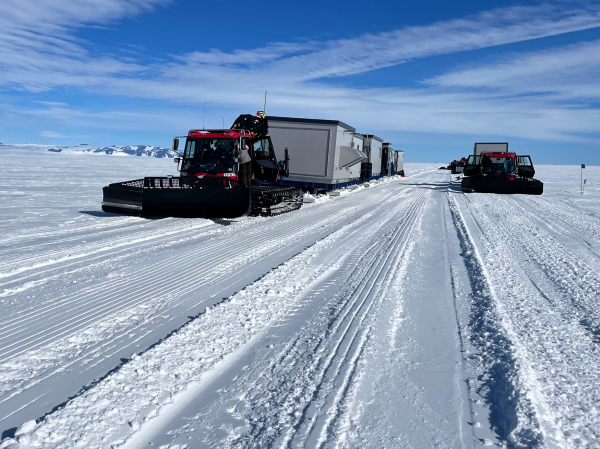

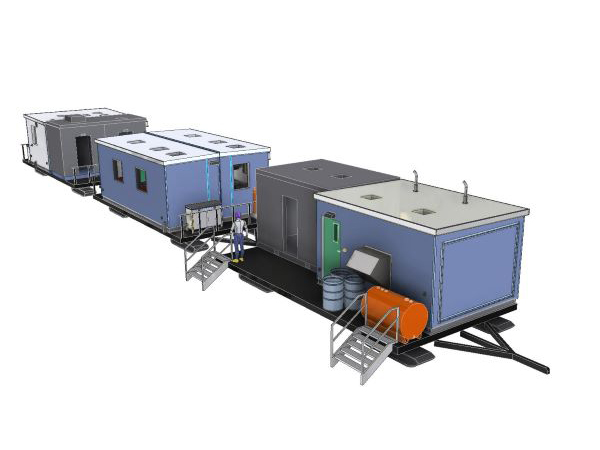

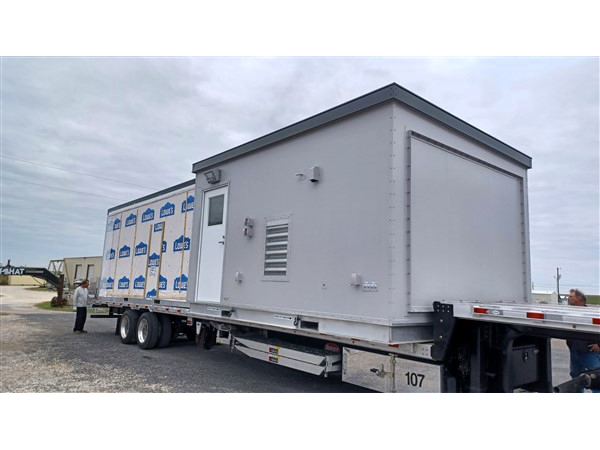

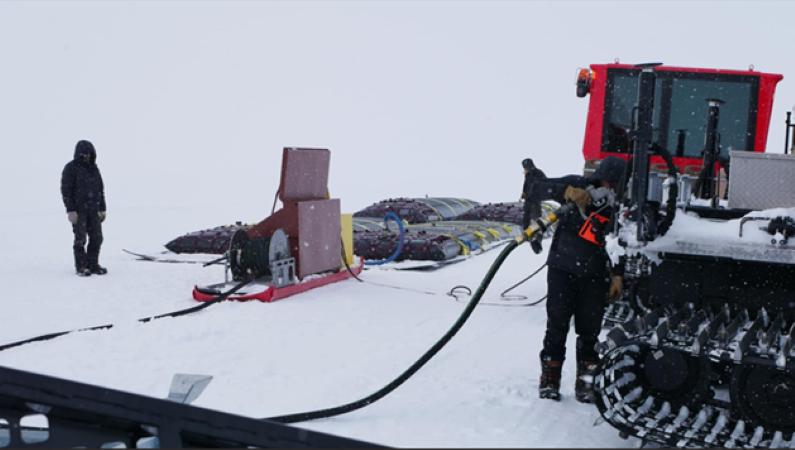

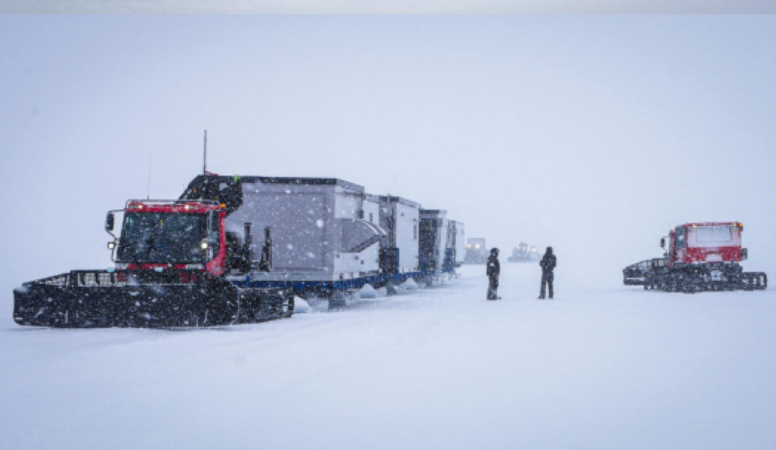

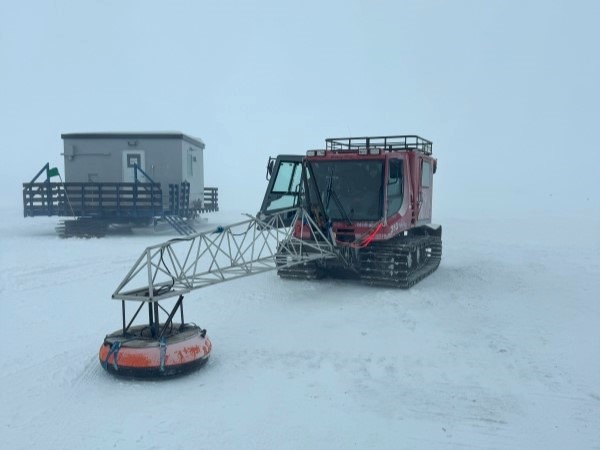

Clegg's generator, washroom and galley modules, along with sleeping quarters and storage modules, will be mounted to sled decks and pulled by a large tractor enabling universities, research institutions and foreign nation programs to conduct valuable scientific research in the region.

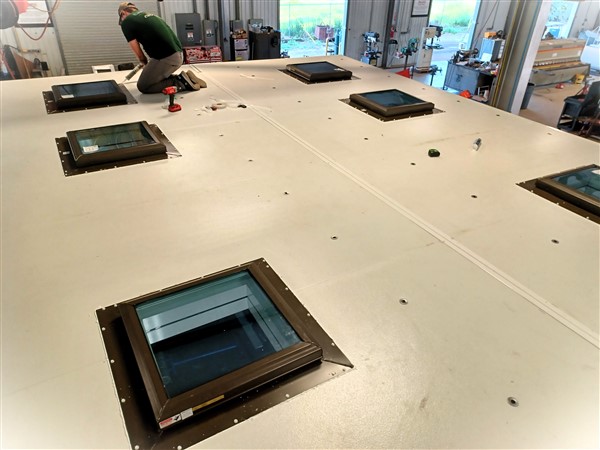

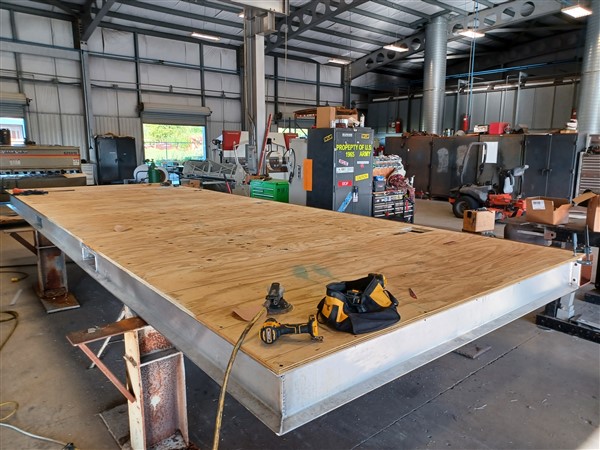

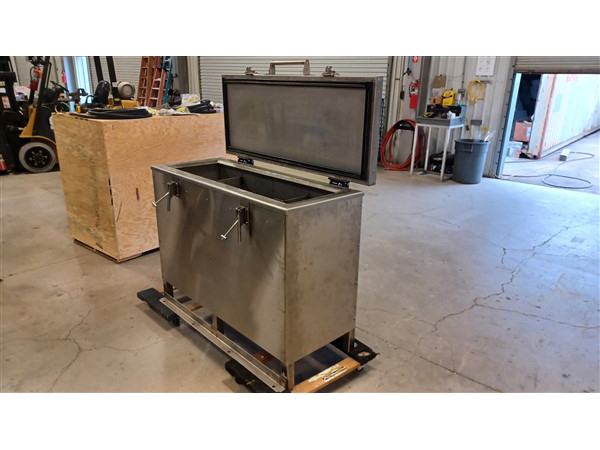

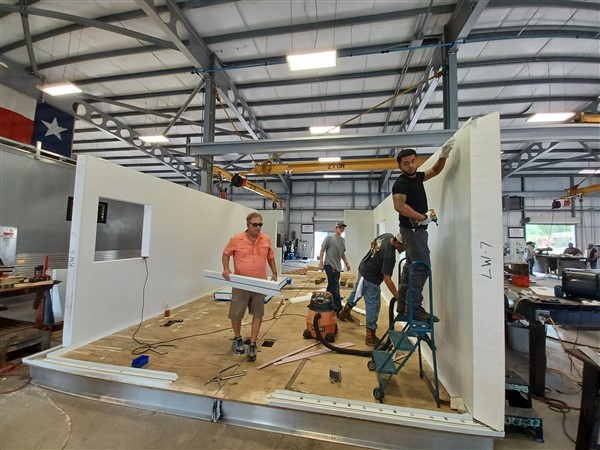

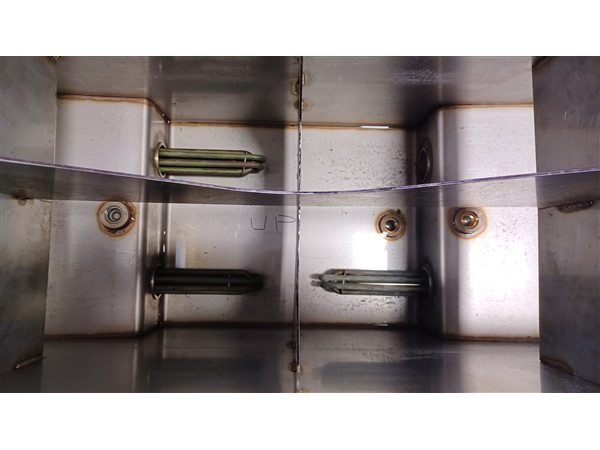

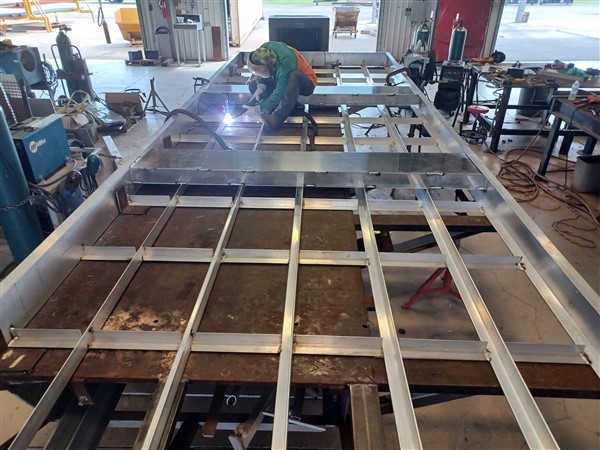

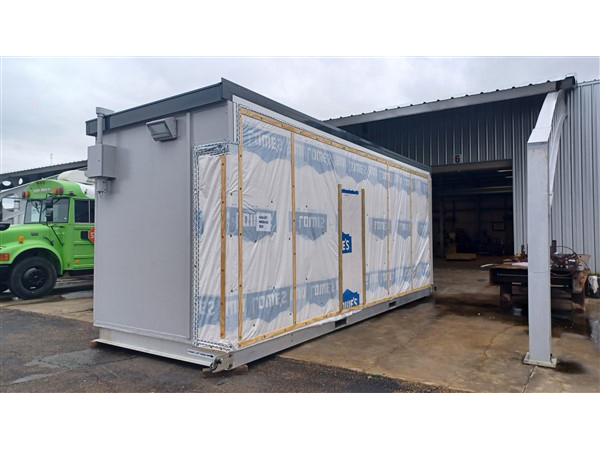

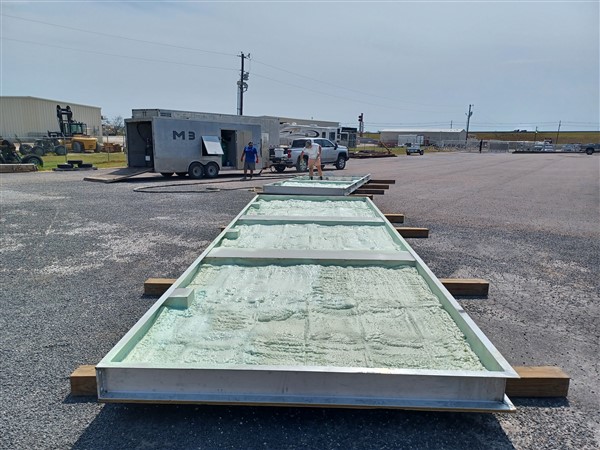

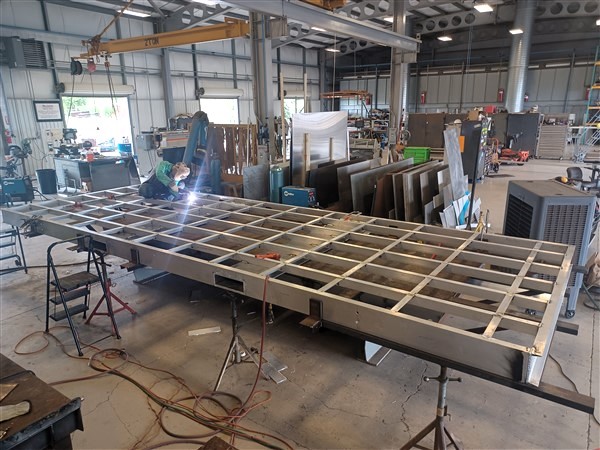

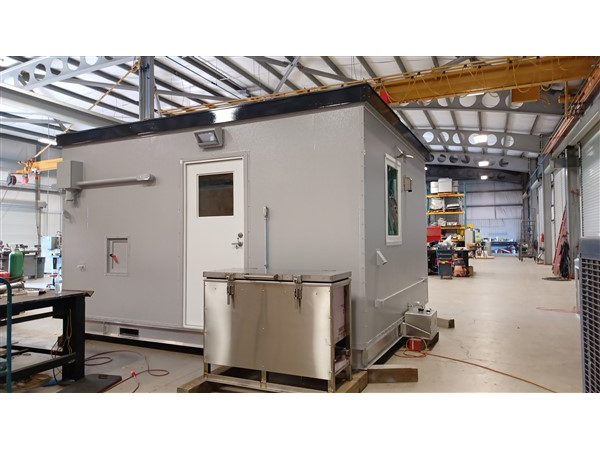

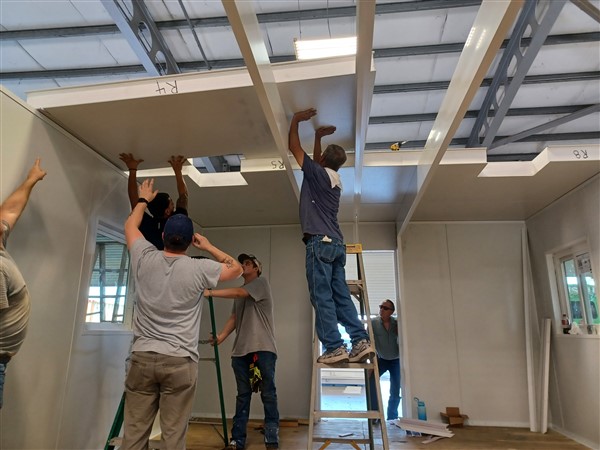

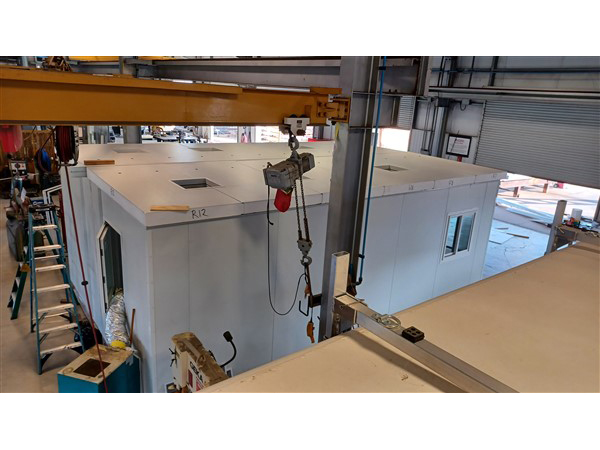

Each module was built on an all aluminum custom frame. The module structures were manufactured using six inch thick insulated foam panels by Structall Building Systems. Clegg custom manufactured stainless steel snow melter devices, provide a filtered water supply for the galley and washroom modules. Water is pumped from the snow melter into each modules' 100 gallon holding tank.
Other Details and Features:

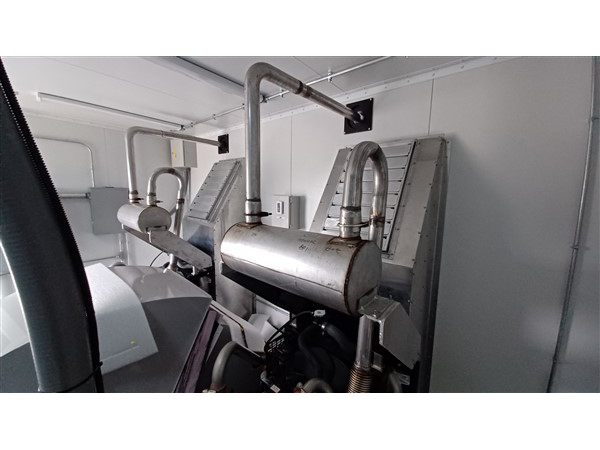

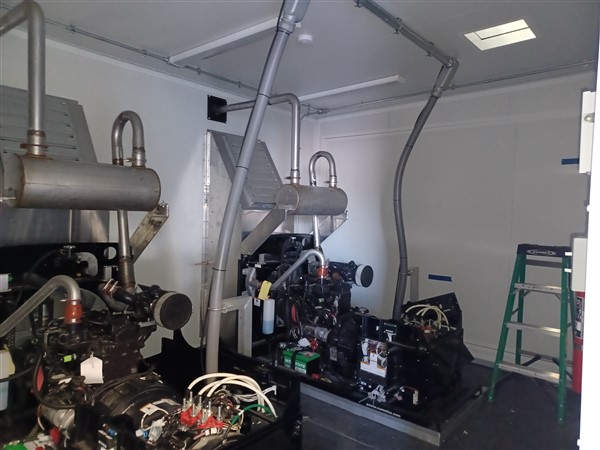

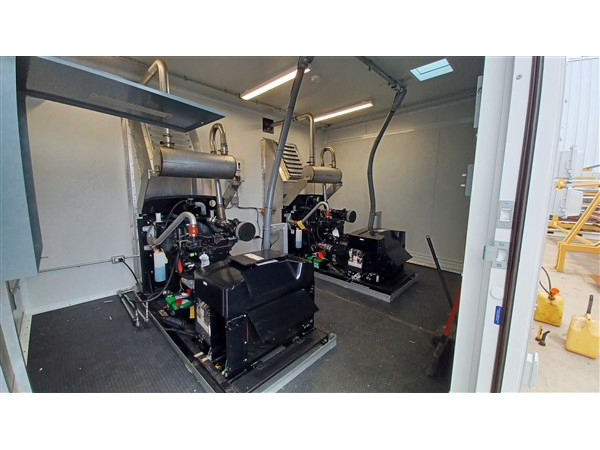

- Generator module houses two model C60D6C 60 kW Cummins diesel generators providing power to all traverse modules

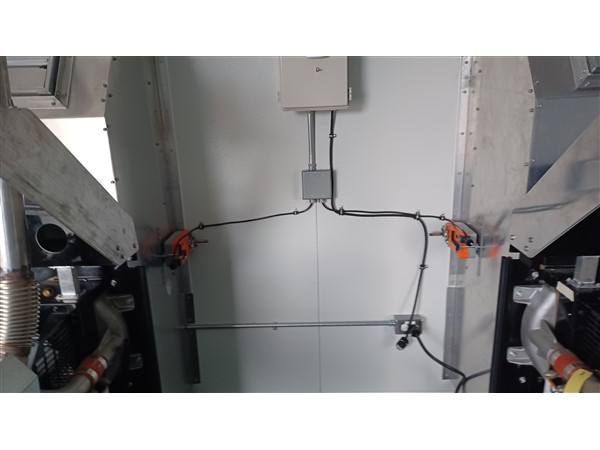

- Custom generator ventilation system equipped with Belimo Fail Safe modulating actuators are designed to automatically open and close as needed to provide optimum ventilation and operating temperature
- Specialty heater devices installed for generator battery and alternator

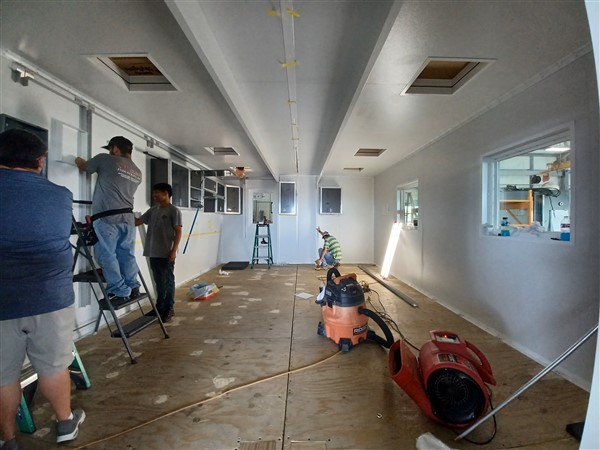

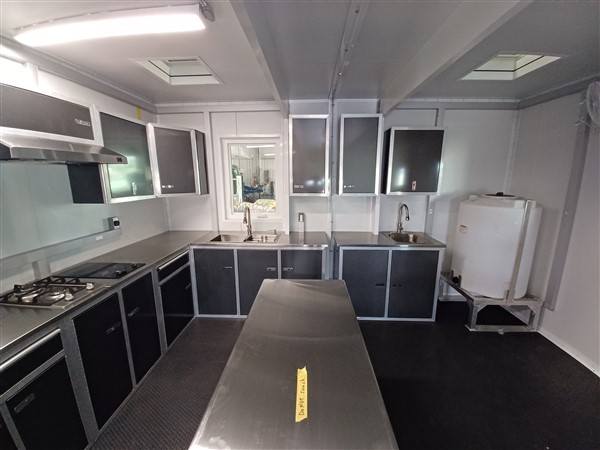

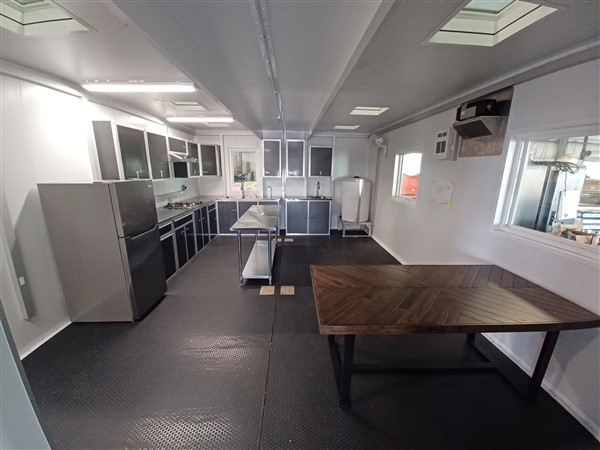

- Galley module furnished with both gas and electric stove tops with vent hood
- Galley and washroom equipped with electric water pipe heating cable
- Galley module refrigerator
- On demand hot water heaters installed in galley and washroom modules
- All modules equipped with wall fans, electric wall mounted heaters and Wasbasto diesel heaters
- All modules equipped with Co2 / smoke alarms

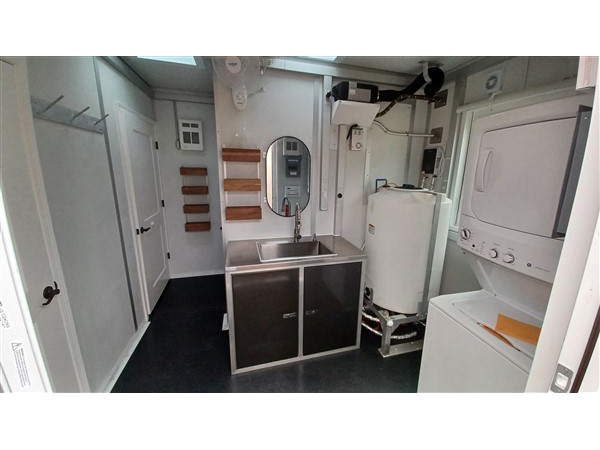

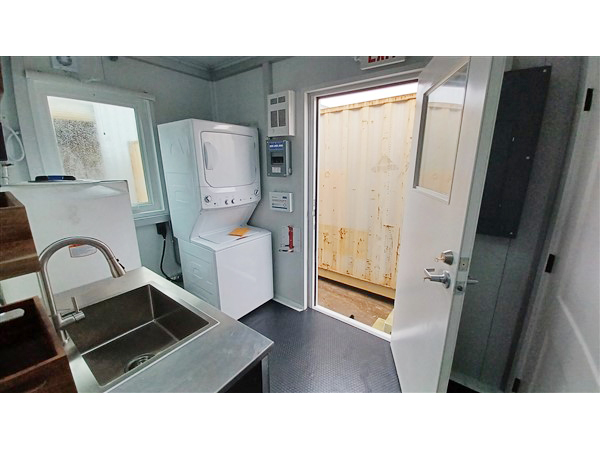

- Stacked washer and dryer in washroom module

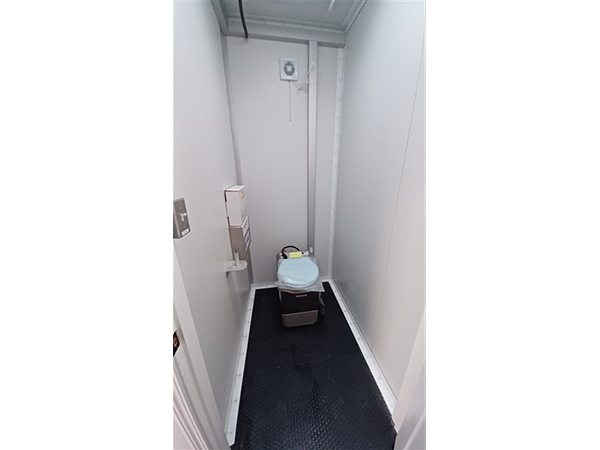

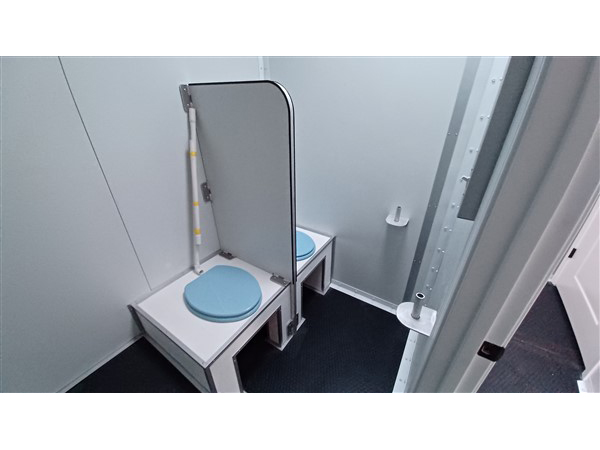

- (1) Incinolet electric incinerating toilet, (1) waterless urinal and (2) basic waterless toilets installed in washroom

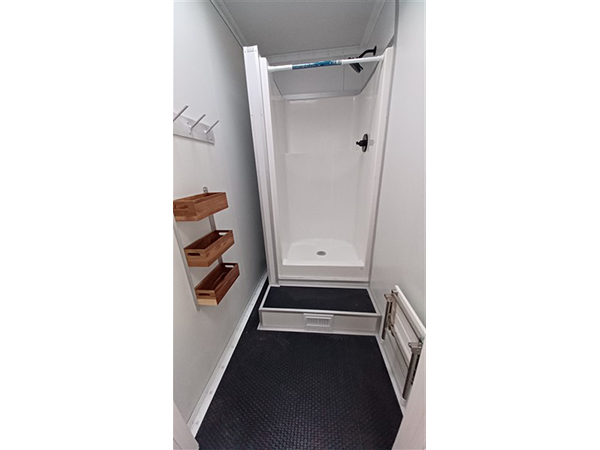

- (1) Fiberglass shower stall in washroom
- And much more!
