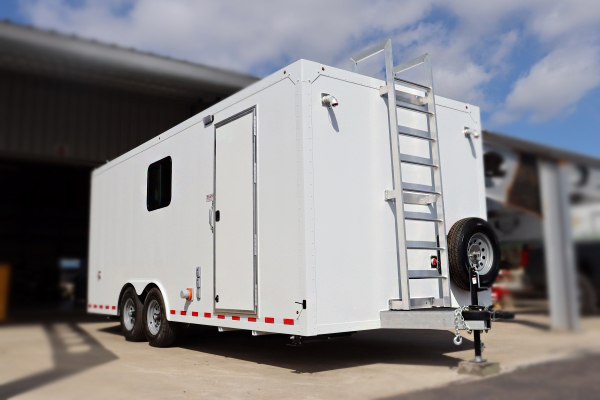

Clegg Industries custom manufactured an all aluminum 20' x 8.5' x 7' cargo style trailer for NOAA-CREST Center, Grove School of Engineering, Electrical Engineering Dept., The City College of New York.
Features Include:
- (2) 5,200 lbs. rubber torsion axles
- Electric brakes on all wheels
- 16” wheels with 235/95 R 16 Tires
- Mounted spare wheel and tire

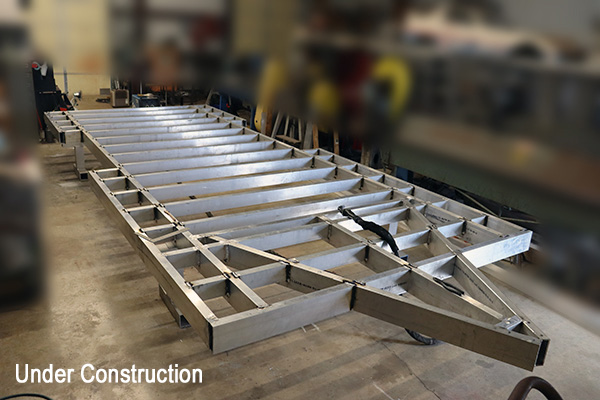

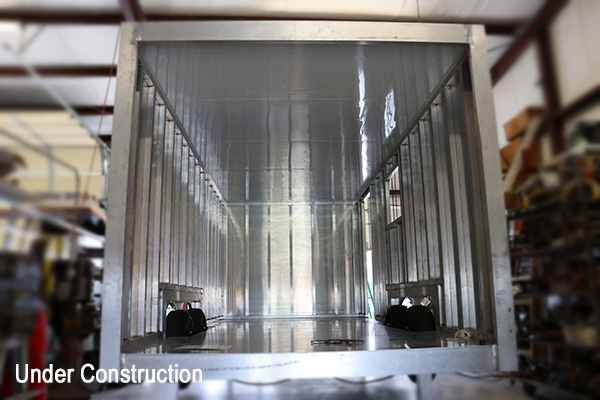

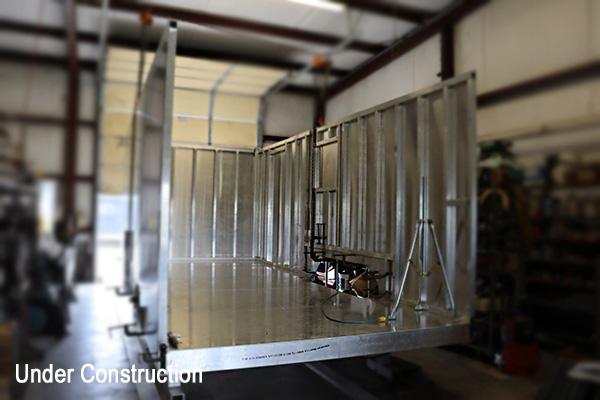

- All aluminum trailer frame, floor structure, walls, and ceiling structure
- Proprietary .040 aluminum exterior side sheets bonded to structure
- Aluminum walk on roof
- .125 Aluminum floor

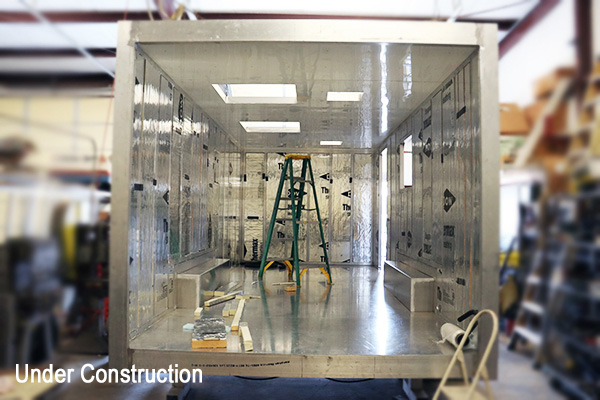

- 2” Thick walls with high performance insulation
- 3” Thick roof with high performance insulation
- All welded structure for maximum rigidity
- L.E.D exterior D.O.T. light system
- Heavy duty 2 5/16 ball coupler
- Heavy duty tongue jack
- Interior walls and ceiling lined with .040 pre-painted white aluminum
- Exterior high-performance paint

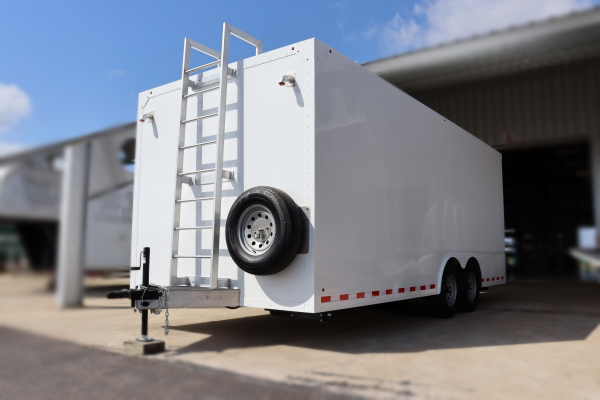

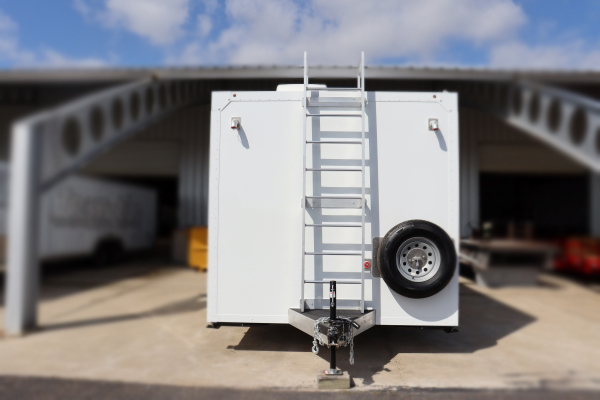

- Permanently mounted custom aluminum roof access ladder

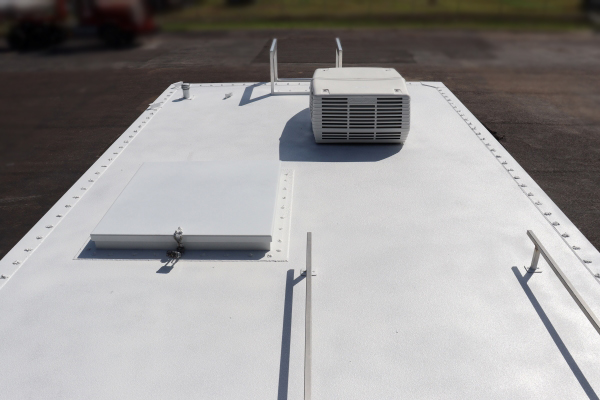

- 15,000 B.T.U roof mounted air conditioner with heat

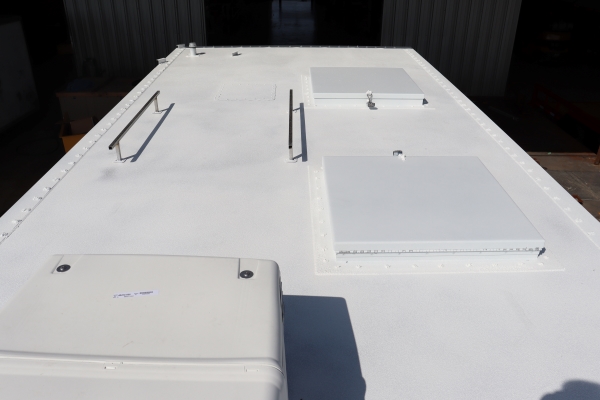

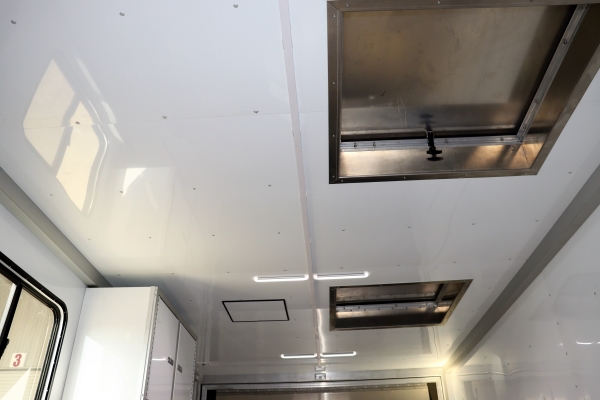

- (2) Custom built waterproof roof hatches for Lidar instruments
- Extra frame out and wiring provision for future 2nd A.C. Unit
- (2) 12-volt heavy duty batteries, 12v charger and converter unit

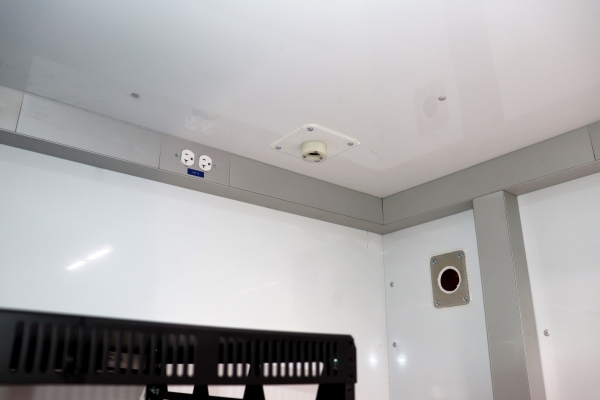

- Complete electrical system including distribution panel and L.E.D. lights

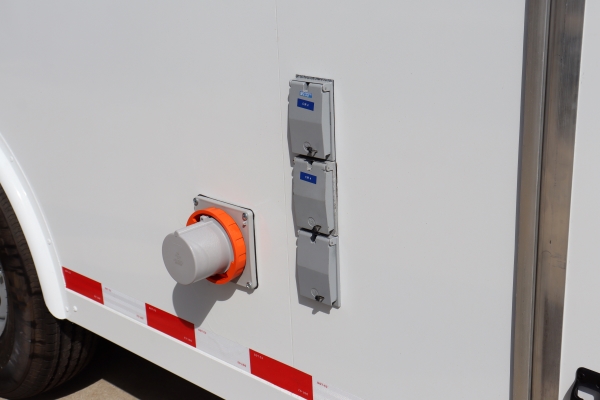

- 110v interior and exterior wall receptacles and switches

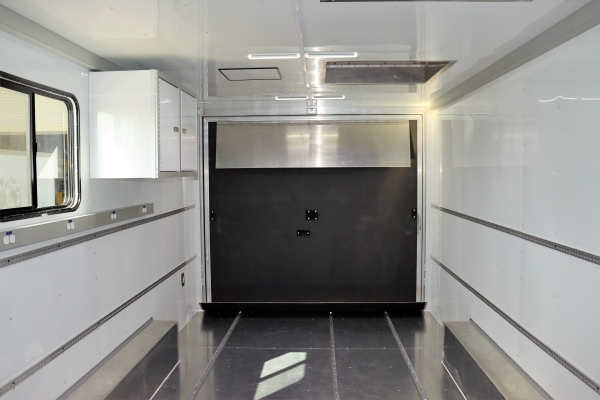

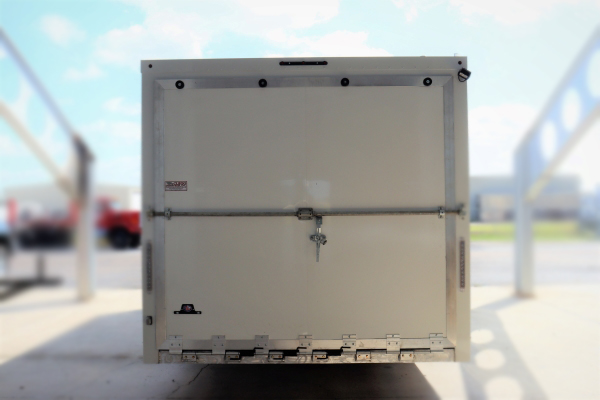

- Heavy duty ramp style door with assist spring
- Heavy duty aluminum entrance door
- Aluminum step at entrance door

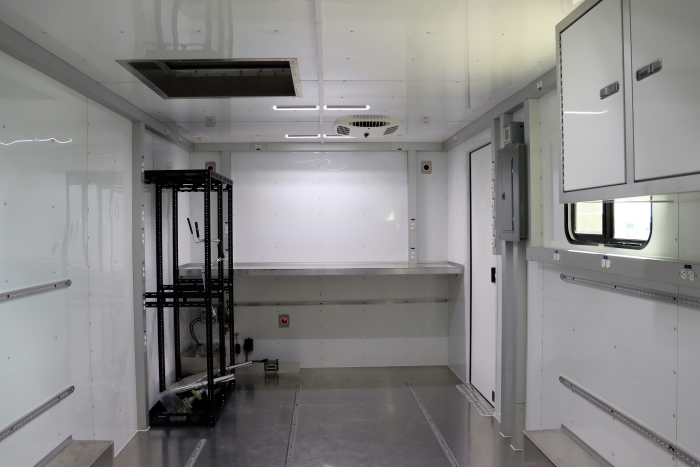

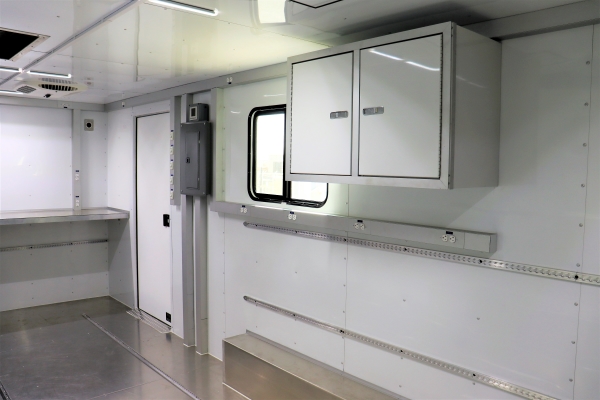

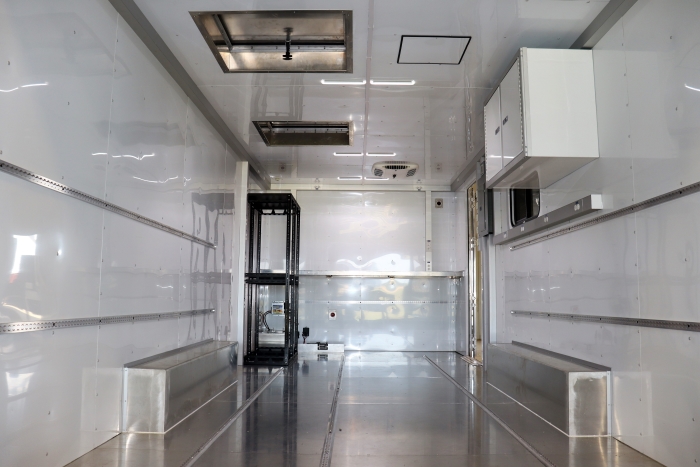

- All aluminum base cabinets, countertop, and overheads

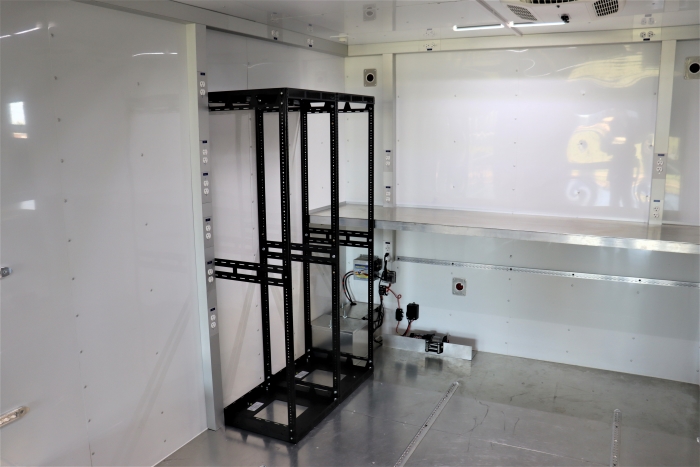

- (2) full HGT electronic racks permanently installed and secured
- Custom cable trays on wall
- Custom floor mounter rail, trolley track for Lidar trolley rack, table

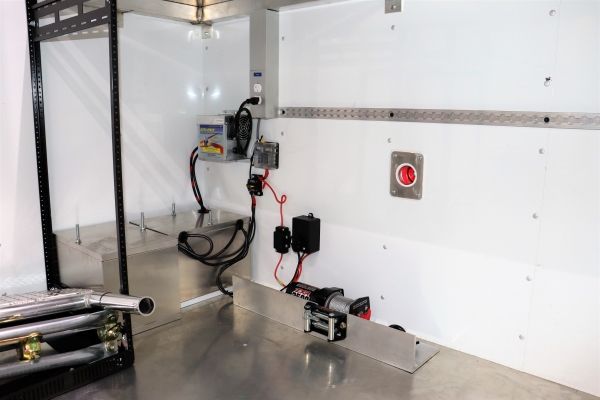

- 12-volt electric winch to assist in placement of Lidar unit

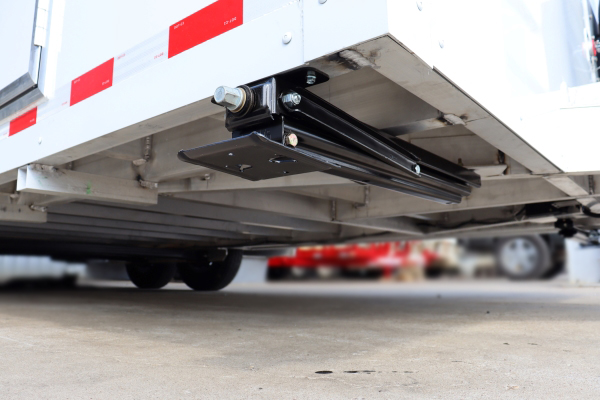

- 4 corner mechanical, leveling, stabilizer jacks
- Airline cargo track on floors and walls
- Phone and data antenna mounting provisions
- Air sampling cane mounting provisions

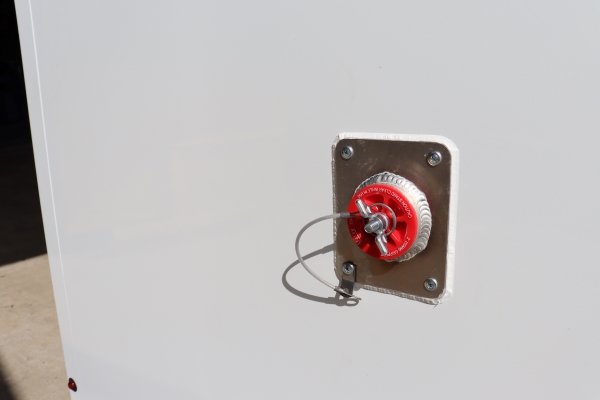

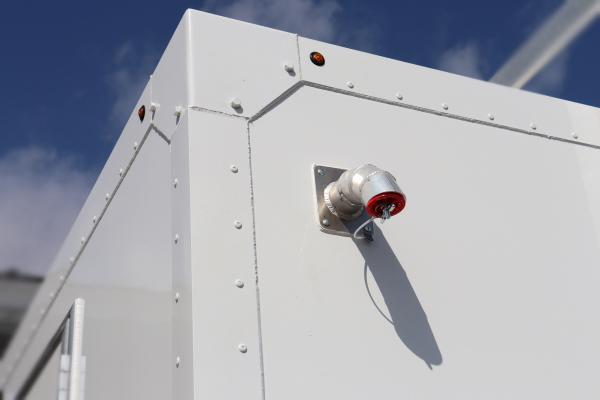

- Weatherhead for cable routing into trailer
- All systems comply with strict IS0 9000-15 quality standards
