EXTERIOR LIGHTING SYSTEM

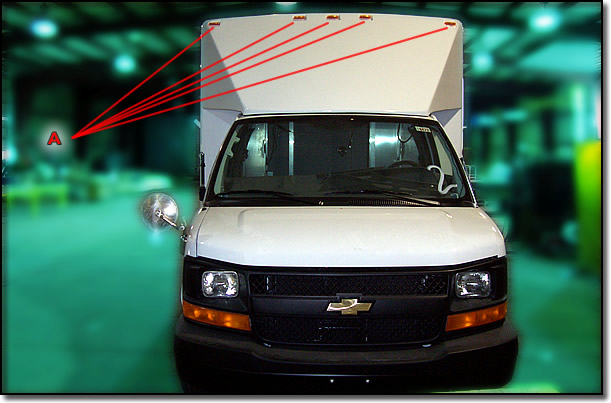

FRONT SIDE EXTERIOR LIGHTS
Reference
Description
Part Number
Click For More Info
A
(5) Amber LED clearance & marker lamp
V250-57-00
Amber LED Clearance & Marker Lamp

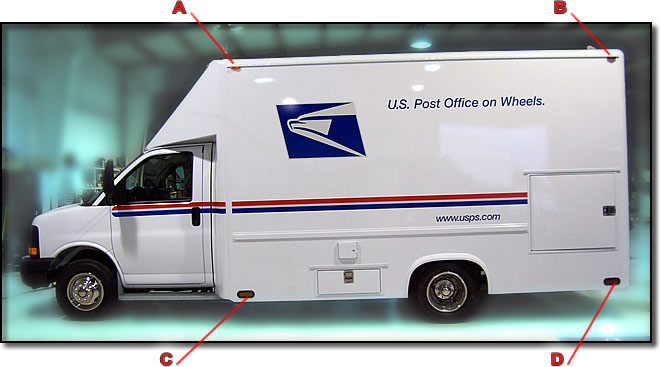

DRIVER SIDE EXTERIOR LIGHTS
Reference
Description
Part Number
Click For More Info
A
(1) Amber LED clearance & marker lamp
V250-57-00
Amber LED Clearance & Marker Lamp
B
(1) Red LED clearance & marker lamp
V250-58-00
Red LED clearance & marker lamp
C
(1) 6" oval flange mount amber Turn Signal/ Marker
V250-59-00
6" oval flange mount amber Turn Signal/ Marker
D
(1) 6" oval flange mount red Turn Signal/ Marker
V250-60-00
6" oval flange mount red Turn Signal/ Marker

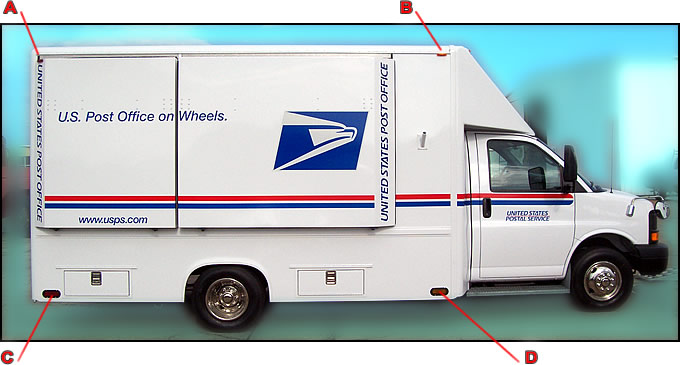

PASSENGER SIDE EXTERIOR LIGHTS
Reference
Description
Part Number
Other Info
A
(1) Red LED clearance & marker lamp
V250-58-00
Red LED clearance & marker lamp
B
(1) Amber LED clearance & marker lamp
V250-57-00
Amber LED Clearance & Marker Lamp
C
(1) 6" oval flange mount red Turn Signal/ Marker
V250-60-00
6" oval flange mount red Turn Signal/ Marker
D
(1) 6" oval flange mount amber Turn Signal/ Marker
V250-59-00
6" oval flange mount amber Turn Signal/ Marker

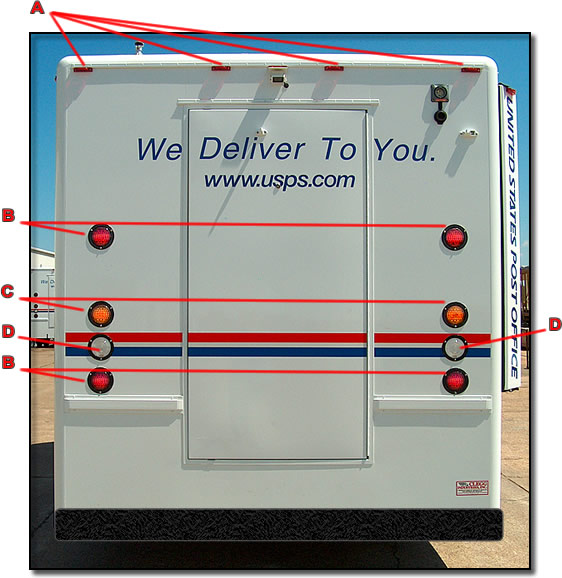

REAR EXTERIOR LIGHTS
Reference
Description
Part Number
Other Info
A
(1) Red LED clearance & marker lamp
V250-58-00
Red LED clearance & marker lamp
B
(4) 4" round flanged red LED stop / tail / turn lamp
L13R
4" round flanged red LED stop / tail / turn lamp
C
(2) 4" round flanged amber LED turn signal / marker
L13A
4" round flanged amber LED turn signal / marker
D
(2) 4" round flanged white back up lamp
4064W
4" round flanged white LED back up lamp

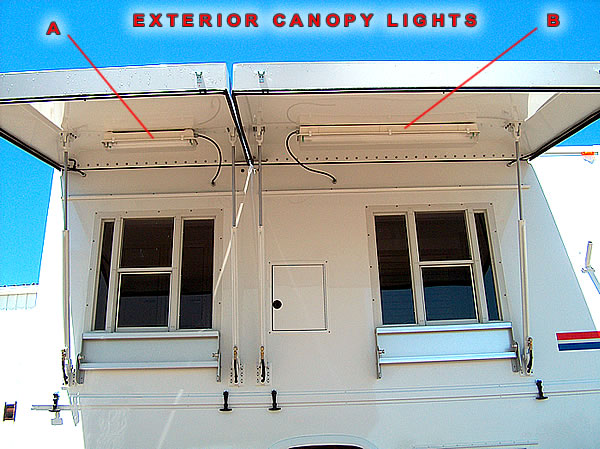

EXTERIOR CANOPY LIGHTS
Reference
Description
Part Number
Other Info

A
Exterior Canopy Light - Left
V250-49-00
-
Exterior Canopy Light - Left
B
Exterior Canopy Light - Right
V250-50-00
-
Exterior Canopy Light - Right

BACK TO ELECTRICAL SYSTEM

U.S. Post Office On Wheels • Technical Information • Exterior Lights
