EXTERIOR VEHICLE DECALS

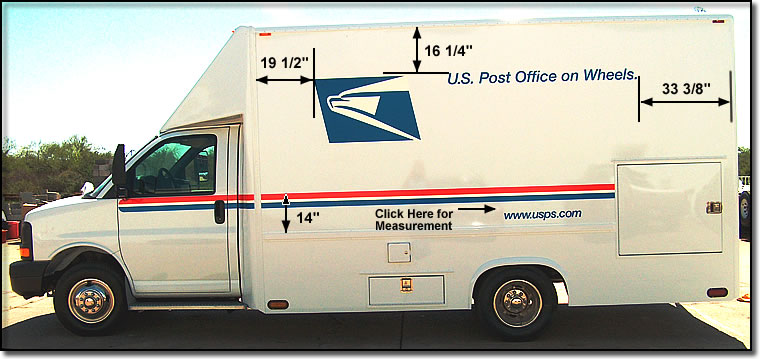

Decal Placement Specifications - Driver Side
* Click On Measurements for Detail View


Reference
Driver Side Decal Part Numbers
Description
A
V250-00-00
Driver Side Large Eagle Decal:
23.5" (H) x 38" (W) driver side decal (left facing), blue on 3M FS57 white reflective with buried mark, square cut to shape, premask.
B
V250-00-00
US Post Office On Wheels Decal:
Sides, 4" (H) x 66.047" (W),
3M 6292E custom blue reflective with buried mark, prespaced graphic, premask.
C
V250-00-00
Red, White and Blue Reflective Stripe Decal: Sides and rear, 5" x 150 ft. roll with buried mark.
D
V250-00-00
www.usps.com decal:
Sides, 3" (H) x 27" (W), 3M 6292E custom blue reflective with buried mark, prespaced graphic, premask.

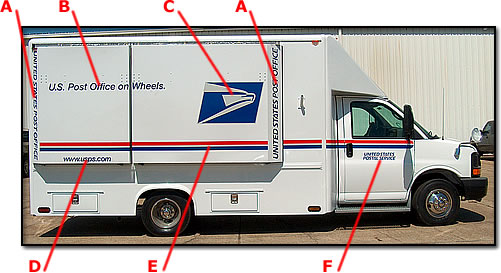

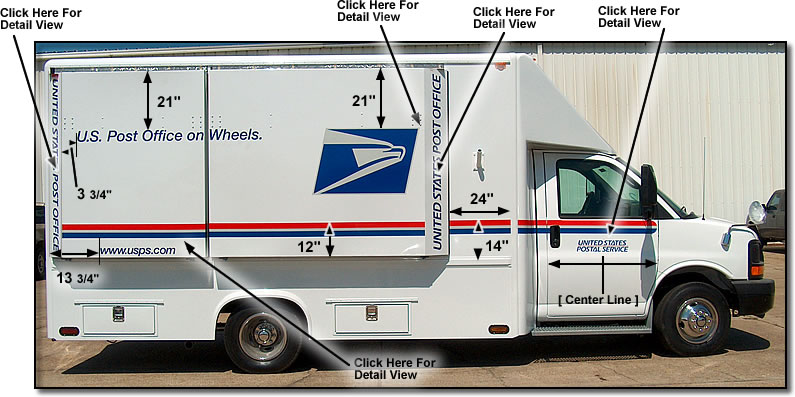

Decal Placement Specifications - Passenger Side
* Click On Measurements for Detail View

Reference
Passenger Side Decal Part Numbers
Description
A
V250-00-00
United States Post Office Decal:
Canopy doors, 3.375" (H) x 62.25" (W) (prox), 3M 6292E custom blue reflective with buried mark, prespaced graphic, premask.
B
V250-00-00
US Post Office On Wheels Decal:
Sides, 4" (H) x 66.047" (W),
3M 6292E custom blue reflective with buried mark, prespaced graphic, premask.
C
V250-00-00
Passenger Side Large Eagle Decal:
23.5" (H) x 38" (W) passenger side decal (right facing), blue on 3M FS57 white reflective with buried mark, square cut to shape, premask.
D
V250-00-00
www.usps.com decal:
Sides, 3" (H) x 27" (W), 3M 6292E custom blue reflective with buried mark, prespaced graphic, premask.
E
V250-00-00
Red, White and Blue Reflective Stripe Decal: Sides and rear, 5" x 150 ft. roll with buried mark.
F
V250-00-00
United States Postal Service Decal:
Door, 4.125" (H) x 19.39" (W), red and blue on 3M FS57 white reflective with buried mark, prespaced graphic, premask.

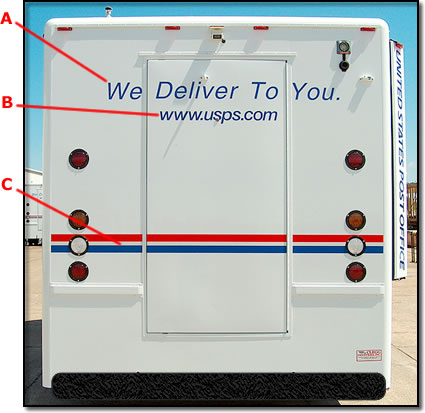

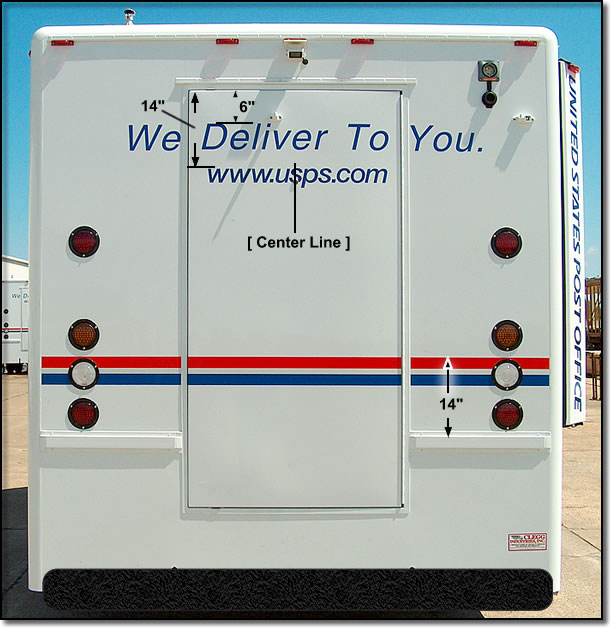

Decal Placement Specifications - Rear Side

Reference
Driver Side Decal Part Numbers
Description
A
V250-00-00
We Deliver To You, Decal, Rear Door:
4.6875" (H) x 55" (W) (prox),
3M 6292E custom blue reflective with buried mark, prespaced graphic, premask.
B
V250-00-00
www.usps.com, decal, Rear Door:
3.5" (H) x 31.5" (W), 3M 6292E custom blue reflective with buried mark, prespaced graphic, premask.
C
V250-00-00
Red, White and Blue Reflective Stripe Decal: Sides and rear, 5" x 150 ft. roll with buried mark.

BACK

U.S. Post Office On Wheels • Technical Information • Exterior Vehicle Decals
